P6 SMD LED Screen 960×960mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mobil Led Ekran

Reklamınızı istediğiniz yerde  Reklamları, kamyonun üzerinden sürerek veya kalabalık yerlere göndererek reklamınızı daha fazla insanın görmesini  sağlayacak şekilde oynayabilirsiniz. Ayrıca, küçük parti veya yardım etkinliği için sahne arka planı olarak kullanılabilir.

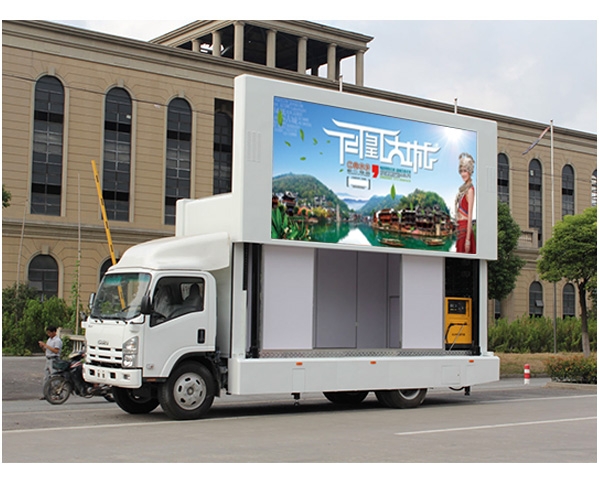

PH6 Truck LED Screen

The moving LED display is finest option for truck and vehicle advertisement. The stable display keeps the images and videos blur-free, even when the vehicle is moving. Easy to install and control. One man can handle everything.



Hot Product in 2015

The Truck LED Screen has remained the hottest product in 2015 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2015.



The quality module

All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.

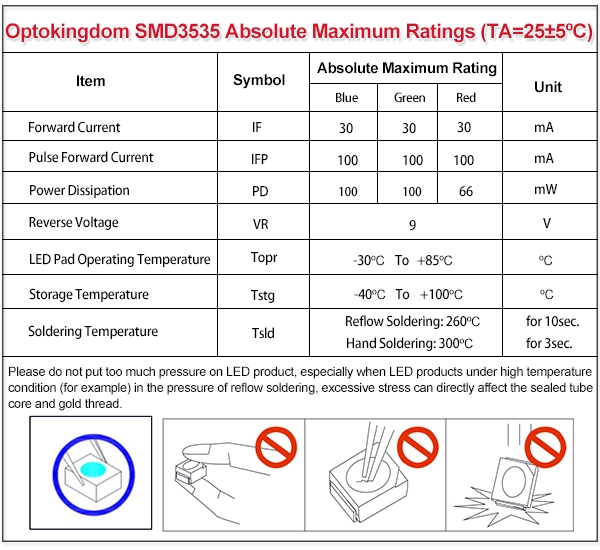

IFP Conditions

One: 1/10 Duty Cycle. Two: 0.1 msec Pulse Width.



Electrical / Optical characteristics

One: Tolerance of measurement of Vf is ±0.05 V.



Two: Luminous Intensity Measurement allowance is ± 10%.



Three: Color Coordinates Measurement allowance is ± 1nm.



Entegreli Tasarım,Kolay Yükleme

İnce ve çok hafif olması ekranın taşımasını,taşımacılığını ve yüklemesi oldukca kolay hale getirir.Yüklemek için özel malzeme gerekmez.Herşey zaten içinde yüklüdür,ve birkaç dakika içinde kolayca yükliyebilirsiniz.



Parameters

 PH6  Outdoor SMD series

Pixel Pitch

6 mm

Pixel Density

 27777 Dots/m²

LED Standard

SMD3535

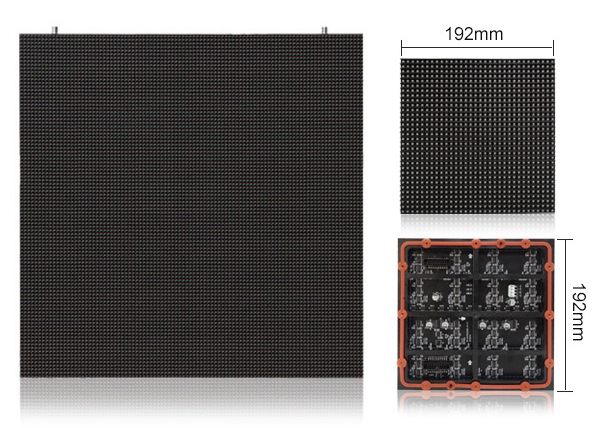

Module Size

192×192mm

Module Resolution

32×32=1024(Dots)

Cabinet Dimension(W*H*D)

960×960×175mm

Cabinet Resolution

160×160=25600(Dots)

Brightness

 ≥7500cd/m²

Grey Scale Levels

 16bit

Protection Level(front/back)

IP66/IP54

Display Function

Text,Graphics,Video

Drive Mode/Driver Position

Constant driving 1/8 Scan,Combined diver board

Refresh Rate

≥1000Hz

Viewing Angle (H/V)

 H:120°         V:120°

Nearest Viewing Distance

9m

Consumption

 Max.consumption 1200w/m²

Average.consumption 300w/m²

Control Card Input

DVI,USB,RJ45、HDMI(Sold separately)

 Comunication Type

 Net cable,3G、WIFI(Sold separately)
