P8 Outdoor Advertising Player 3072×1792mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

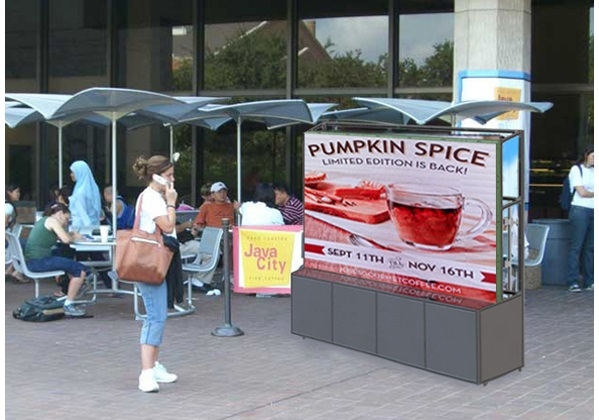

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

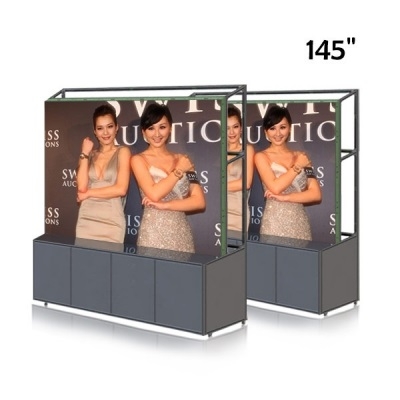

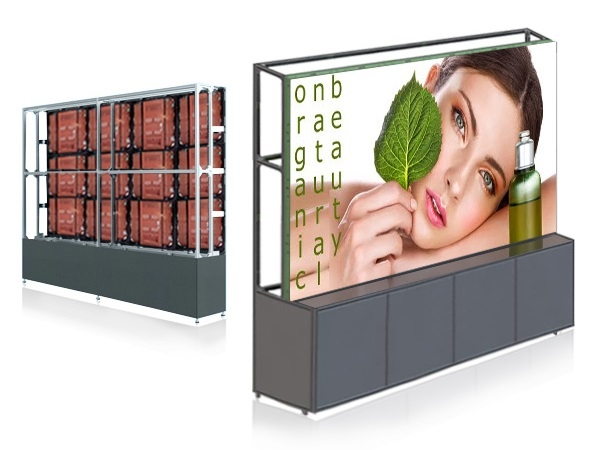

Outdoor LED Advertising Player

Beautiful mobile design, meeting your unique advertisement requirements. Easy to carry and install. Can be installed at any place and serves different purposes. Ideal to use for different occasions.

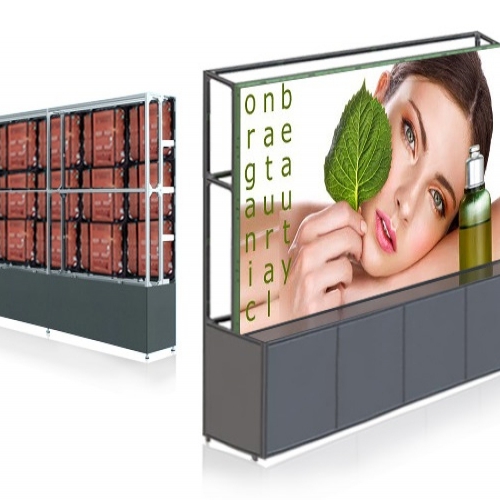

Entegreli Tasarım,Kolay Yükleme

İnce ve çok hafif olması ekranın taşımasını,taşımacılığını ve yüklemesi oldukca kolay hale getirir.Yüklemek için özel malzeme gerekmez.Herşey zaten içinde yüklüdür,ve birkaç dakika içinde kolayca yükliyebilirsiniz.



Space Saving, Ultra-lightweight

The Mobile Advertising LED Screen is only very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.

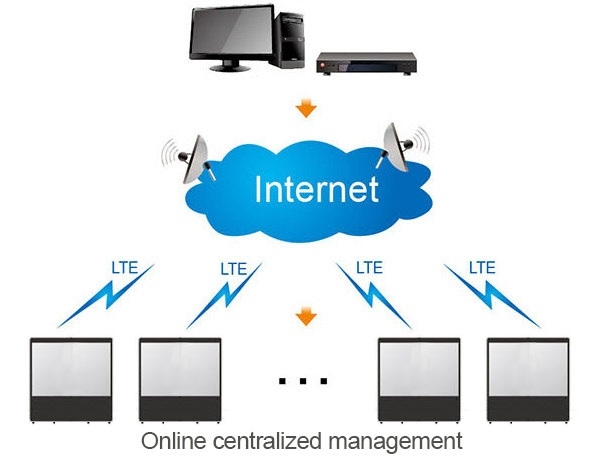

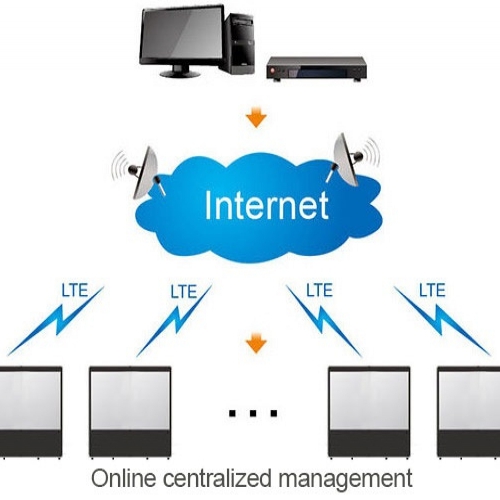

Akıllı Control Sistemi

Ekranar 3g,Wi-Fi,HDMI ve U-Disk ile uzaktan kontrol edilebilir.Akıllı control sistemi ile istediğiniz uzaklıktan ekranlarınızı control edebilirsiniz.İstediğiniz yerden ekranın ayarlarını ve içeriğini değiştirebilirsiniz.

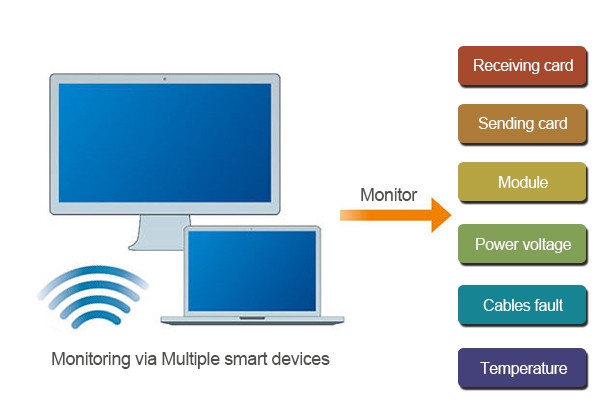

Real Time Monitoring - Easy to Manage

The LED display can be connected with different devices through cable for real-time control. Keep an eye on everything through remote controlling. Remote management allows you to manage the activities from anywhere. Highly suitable for public announcements.



Resimlerinizde Her Detayı Sağlayın

Ürünlerimizin en ince detayına kadar uzun zaman ayırıp çalışmaktayız,bu sayede koyduğunuz resimlere bakmaktan keyif alcaksınız.Mükemmel pixel ile resimlerinize bakmaktan zevk alcaksınız,buda demek oluyor ki resimlerde,video ve ya yazılarınızda en ince detaya kadar görebilceksiniz.



Wheels Design - Easy to Move

The display runs on wheels which make it easy to move from one place to another. You don't need and vehicles or specialized labor to transport. Move it yourself with utmost safety and convenience.



Great Safety Parameters - More Reliable

The Mobile Advertising LED Screen has undergone strict safety parameters. It has a steel structure which prevents it from damage while shaking and moving. Safer and more reliable against different environmental conditions.



Hepsi için Tek Fiyat

Tek fiyatla, LED ekran, dolap, kontrol sistemi ve paketi içeren komple seti alırsınız. Sana çok para kazandırıyor. Ayrıca, ürününüz garanti süresi dolarsa hatalı aksesuarları herhangi bir ücret ödemeden değiştiririz.


LED Lamp
Type SMD3535
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 8mm
Module Size 256×128mm
Module Resolution 32×16=512(Dots)
Module Weight 0.4kg
LED Cabinet
Display Dimension(W*H) 3072×1792mm
The entire screen size(W*H*D) 3072×1792×650mm
Resolution W*H(dots/set) 384×244
Cabinet Dimension(W*H) 1024×896mm
The entire screen resolution 86016dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Aluminum
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 242kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥7200cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 120(Horizontal),120(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 9m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 3300W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 1000W/H
Life-span 100,000 hours
Display Function Text,Graphics,Video
Protection Level(front/back) IP66/IP54
Refresh Rate ≥1000Hz
Malfunction Dot Rate less than 0.0001
Working Temperature -30℃~50℃
Drive Mode/Driver Position Constant driving 1/4 Scan,Combined diver board
Humidity 15%~85%
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB
