P4 Indoor Advertising Player 1040×2200mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

PH5 Indoor LED Advertising Player

Ultra large HD screen provides the viewers with a great viewing experience and its wide viewing angle increases its reach. Highly applicable for indoor areas like bank, airport, store, hotel, station, summit and theater etc.



LED indoor advertising display

Pixel pitch: 5mm Pixel configuration: SMD Brightness: over 2000cd/㎡ Refresh rate: over 1000Hz Drive mode: 1/16 Scan Panel dimension: 960×1920mm



Attractive iPhone Shape - Lighter and Thinner

Indoor Advertising Display features a beautiful iPhone shape measuring 1040mm, 2200mm and 100mm in length, height and width respectively. It's lighter than traditional advertising players which make it easy to transport and install.

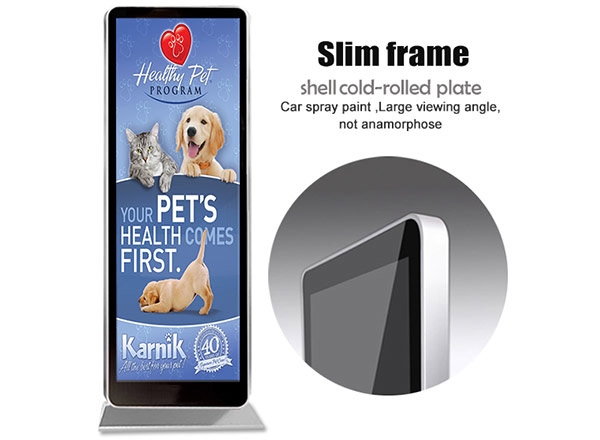

Elegant Look and Slim Frame

The Indoor Advertising Display is manufactured from a powder coated steel base and frame which gives it a beautiful look and extra strength. The surface is coated with a smooth and seamless tempered glass that present clear pictures and more safety.



Easy to Operate - Plug and Play

It's very easy to operate - just plug it into any device and play. Supports a wide range of devices. The integrated design has everything in-built like control card and power supply. Plug and play is very convenient to use.



Resimlerinizde Her Detayı Sağlayın

Ürünlerimizin en ince detayına kadar uzun zaman ayırıp çalışmaktayız,bu sayede koyduğunuz resimlere bakmaktan keyif alcaksınız.Mükemmel pixel ile resimlerinize bakmaktan zevk alcaksınız,buda demek oluyor ki resimlerde,video ve ya yazılarınızda en ince detaya kadar görebilceksiniz.

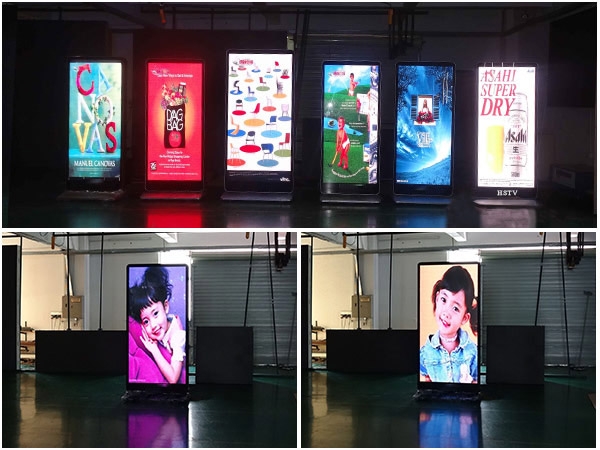

Sıkı Ömür Testi

Tüm ürünler sıkı bir ömür testine tabi tutulur. 72 saat yaşlandırma testi, lamba, loş ışık, renk farkı ve mozaik kullanılmadan yapılır. Ürün ömür testinden geçerse, sizin için en iyi kalitenin sağlandığından emin olarak piyasaya sürülür.



More Information - More Entertainment

The Indoor Advertising Display is a great tool for information broadcasting, and can be used as an advertising media and training module. It can also shows your favorite video. So you get more information and more entertainment over single display.

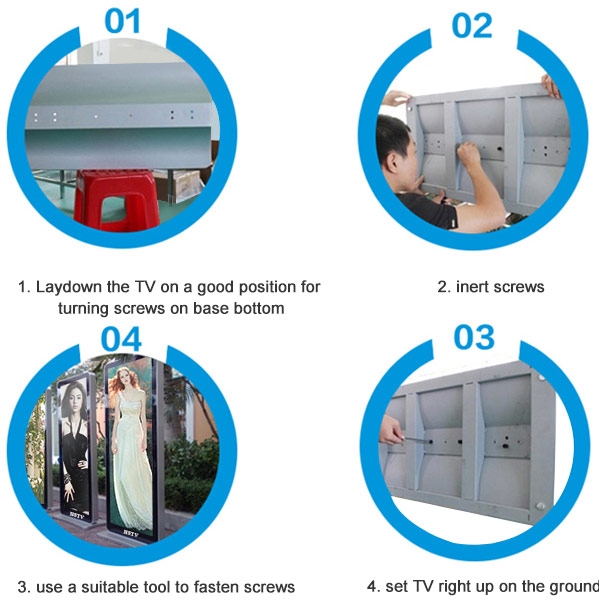

Entegreli Tasarım,Kolay Yükleme

İnce ve çok hafif olması ekranın taşımasını,taşımacılığını ve yüklemesi oldukca kolay hale getirir.Yüklemek için özel malzeme gerekmez.Herşey zaten içinde yüklüdür,ve birkaç dakika içinde kolayca yükliyebilirsiniz.


LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.2kg
LED Cabinet
Display Dimension(W*H) 960×1920mm
The entire screen size(W*H*D) 1040×2200×120mm
Resolution W*H(dots/set) 192×384
Base Size(W*H*D) 600×1040×120mm
The entire screen resolution 73728dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Steel
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 136kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥1800cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 140(Horizontal),140(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 6m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 900W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 250W/H
Life-span 100,000 hours
Display Function Text,Graphics,Video
Protection Level(front/back) IP65/IP43
Refresh Rate ≥1000Hz
Malfunction Dot Rate less than 0.0001
Working Temperature -15℃~50℃
Drive Mode/Driver Position Constant driving 1/16 Scan,Combined diver board
Humidity 15%~85%
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
