P5-A Indoor Window Screen 1200×2320mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

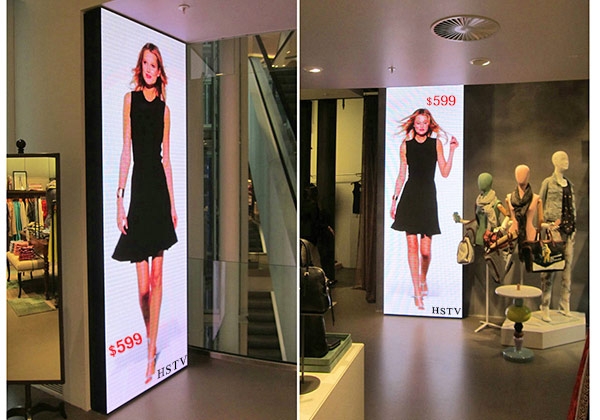

HD Shop Window LED Screen

It features Aluminum alloy frame, tempered glass face, fashionable design and stable display performance. A perfect match for shops and can also be used at bank, store, airport, hotel and other indoor areas.



Stunning Display for Delicate Pictures

High resolution pixel pitch offers excellent quality pictures and display performance. The high contrast ration screen shows your advertisements with great clarity. Suitable brightness makes it ideal for indoor advertising.



Attractive Shape - Lighter and Thinner

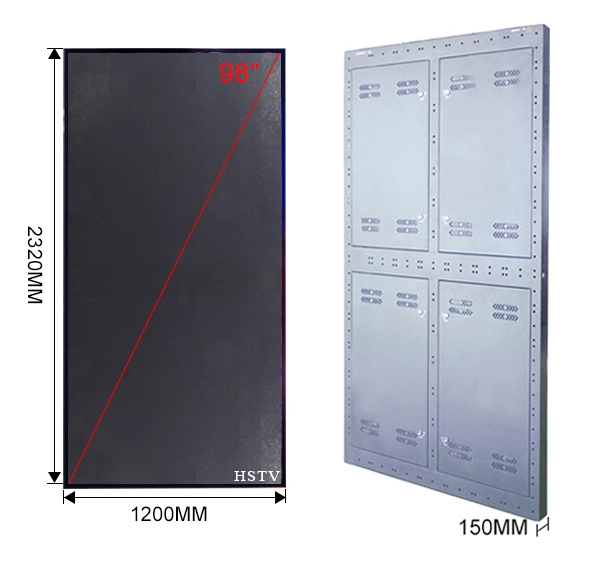

Glass LED Display features a beautiful shape measuring 1200mm, 2320mm and 150mm in length, height and width respectively. It's lighter than traditional advertising players which make it easy to transport and install



Yüksek Parlaklık ve Kaliteli Çıktı

Ekran 2000cd/㎡ ve gelişmiş parlaklık sağlamaktadır.Buda demek oluyor hava şartları nasıl olursa olsun hergün saf ve temiz bir görüntü alacaksınız.Parlaklığı ekranınızı koyduğunuz yere göre ayarlıcaktır.



Elegant Look and Slim Frame

The Glass LED Display is manufactured from a powder coated steel base and frame which gives it a beautiful look and extra strength. The surface is coated with a smooth and seamless tempered glass that present clear pictures and more safety.



Beautiful Display - Attracts more Customers

It features different display modes which you may change as per your needs. Beautiful design and crystal-clear displays catch eyes easily. Shop window LED screen changes static display to dynamic for better advertising effects.



Seamless Display and Visual Effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material


LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.25kg
LED Cabinet
The entire screen size(W*H*D) 1200×2320×150mm
Working Temperature -15℃~50℃
Display Dimension(W*H) 1120×2240mm
Humidity 15%~85%
Resolution W*H(dots/set) 224×448=100352dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Steel
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 180kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥2800cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 140(Horizontal),140(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 6m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 1600W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 450W/H
Life-span 100,000 hours
Refresh Rate ≥1000Hz
Protection Level(front/back) IP54/IP43
Drive Mode/Driver Position Constant driving 1/8 Scan,Combined diver board
Malfunction Dot Rate less than 0.0001
Display Function Text,Graphics,Video
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
