P5-B Indoor Window Screen 1440×2720mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

HD Shop Window LED Screen

Showcase Advertising LED Screen features steel frame, tempered glass face, fashionable design and stable display performance. A perfect match for shops and can also be used at bank, store, airport, hotel and other indoor areas.



Stunning Display for Delicate Pictures

High resolution pixel pitch offers excellent quality pictures and display performance. The high contrast ration screen shows your advertisements with great clarity. Suitable brightness makes it ideal for indoor advertising.

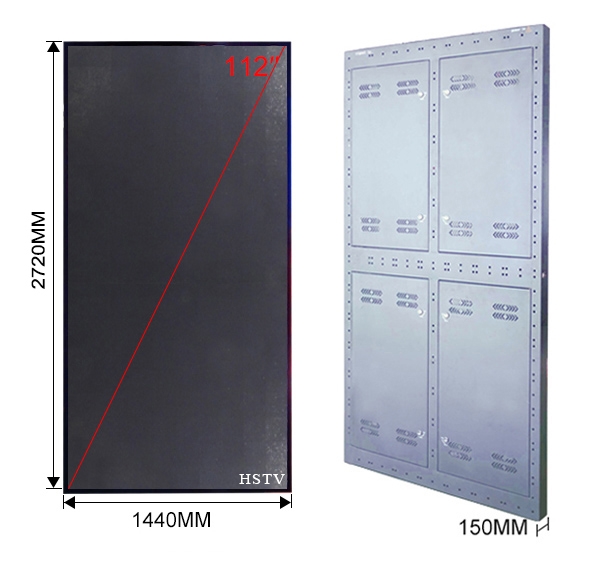

Attractive Shape - Lighter and Thinner

It features a beautiful shape measuring 1440mm, 2720mm and 150mm in length, height and width respectively. It's lighter than traditional advertising players which make it easy to transport and install.



Yüksek Parlaklık,Daha iyi Kalite

Dış mekanlarda ekanlarımız yüksek parlaklıklı çıktıları destekler.Yüksek parlaklığı ve yüksek çözünürlüğü ile vitrin LED ekranı mükemmel görüntü ortaya çıkarır.Sahne,banka,otoban,promosyon,istasyon,stadyum ve birçok dış mekanlarda şahane bir şekilde durur.



Elegant Look and Slim Frame

The Window Glass LED Display is manufactured from a powder coated steel base and frame which gives it a beautiful look and extra strength. The surface is coated with a smooth and seamless tempered glass that present clear pictures and more safety.



Beautiful Display - Attracts more Customers

It features different display modes which you may change as per your needs. Beautiful design and crystal-clear displays catch eyes easily. Shop window LED screen changes static display to dynamic for better advertising effects.



Resimlerinizde Her Detayı Sağlayın

Ürünlerimizin en ince detayına kadar uzun zaman ayırıp çalışmaktayız,bu sayede koyduğunuz resimlere bakmaktan keyif alcaksınız.Mükemmel pixel ile resimlerinize bakmaktan zevk alcaksınız,buda demek oluyor ki resimlerde,video ve ya yazılarınızda en ince detaya kadar görebilceksiniz.


LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.25kg
LED Cabinet
The entire screen size(W*H*D) 1440×2720×150mm
Working Temperature -15℃~50℃
Display Dimension(W*H) 1280×2560mm
Humidity 15%~85%
Resolution W*H(dots/set) 256×512=131072dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Steel
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 180kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥2800cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 140(Horizontal),140(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 6m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 1600W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 450W/H
Life-span 100,000 hours
Refresh Rate ≥1000Hz
Protection Level(front/back) IP54/IP43
Drive Mode/Driver Position Constant driving 1/8 Scan,Combined diver board
Malfunction Dot Rate less than 0.0001
Display Function Text,Graphics,Video
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
