P5 LED Display 960×1600mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

Benzersiz Kabin Tasarımı -Kurulumu ve Taşınması Kolay

Direkli LED kabini doğrudan takılabilir ve çıkartılabilir bu da kurulumdan,zamandan ve emekten etmenizi tasarruf sağlar. Taşınabilir kabin taşıması kolaydır ve nakliye masraflarından da tasarruf edebilirsiniz.Farklı standart kabin renklerinden seçim yapabilirsiniz.



Cluster Management, Easy Operation

Cluster management can be achieved using internet, Wi-Fi and 3G. This makes controlling each LED display individually. Change the display content seamlessly and show the adverts you want to display.



Widely Used in High Coverage

The Pole LED Display for Road Advertising has unique design which makes it look beautiful and easy to install. It can be used on road, mall stage, high-grade residence district, tourist attractions, 4S stores, hospital entrance and many more outdoor places.



En Kaliteli Malzeme,Moduller ve Çipler

Malzemeler,moduller ve çipler özenle seçiliyor.Malzemelerimizi tanınmış firmalardan almaktayız.Çiplerimizi en önde gelen büyük markalardan almaktayız Cree(USA),Nichia(Japan)Epistar,Optp(Taiwan).Entegrelerimiz MBI,TMS,PWM ve MingYangdan alınmaktadır.Bu üretici firmalar çok kaliteli ürünler satmakla ünlüdürler.



Great Advertising Results

The loop plays a same advertisement on dozens of light pole displays, enhancing the visual impact of your advertisement. Your advert will stand apart from others on this display and will get easily noticed by your viewers.



Synchronized Broadcast - Wider Reach

The Pole LED Display for Road Advertising works on synchronal receiving and synchronal broadcasting. This means, they can be easily used on highways because the picture displayed will be clearly visible from a long distance. The high definition picture presents great clarity.



LED Light Pole Display Vs Traditional Light Pole Billboard

LED light pole display features clearer picture quality, high definition, synchronized broadcast and much more. And yes, they are cheaper than traditional light pole billboards. You may find dozens of LED light pole displays in price of single traditional billboard.



Low Investment - High Revenue

The display has small volume and thus it is very inexpensive. It is much more affordable than conventional LED displays. Why spend millions for a big outdoor display when you can install dozens of light pole displays for same amount?



Sıkı Ömür Testi

Tüm ürünler sıkı bir ömür testine tabi tutulur. 72 saat yaşlandırma testi, lamba, loş ışık, renk farkı ve mozaik kullanılmadan yapılır. Ürün ömür testinden geçerse, sizin için en iyi kalitenin sağlandığından emin olarak piyasaya sürülür.


LED Lamp
Type SMD2727
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.4kg
LED Cabinet
Display Dimension(W*H) 960×1600mm
The entire screen size(W*H*D) 960×1600×130mm
Resolution W*H(dots/set) 192×288
The entire screen resolution 55296dots
Cabinets Material Aluminum
Frame Frequency no less than 60 frame/sec
Cabinet Weight 85kg
Input Voltage AC110-220V±10%,50/60Hz
Brightness ≥7000cd/㎡
Output Voltage DC-5V,40A/60A/80A
Viewing Angle 120(Horizontal),120(Vertical)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Nearest Viewing Distance 6m
Color Processing R(1024)×G(1024)×B(1024)
Total Power Consumption (Max) 1600W/H
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Average) 450W/H
MTBF( mean time between failures) 5000 hours
Display Function Text,Graphics,Video
Life-span 100,000 hours
Refresh Rate ≥1000Hz
Protection Level(front/back) IP66/IP54
Working Temperature -30℃~50℃
Malfunction Dot Rate less than 0.0001
Humidity 15%~85%
Drive Mode/Driver Position Constant driving 1/8 Scan,Combined diver board

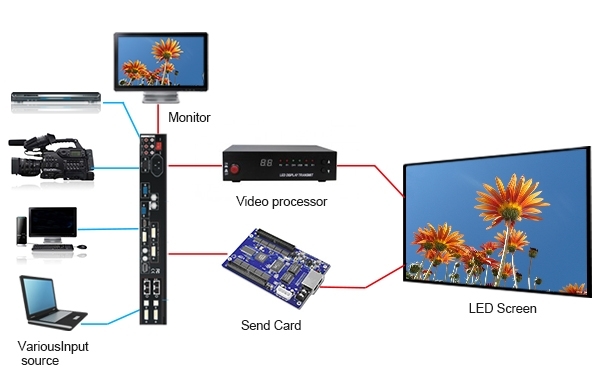

Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
