P5 Indoor 1000×2440mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi

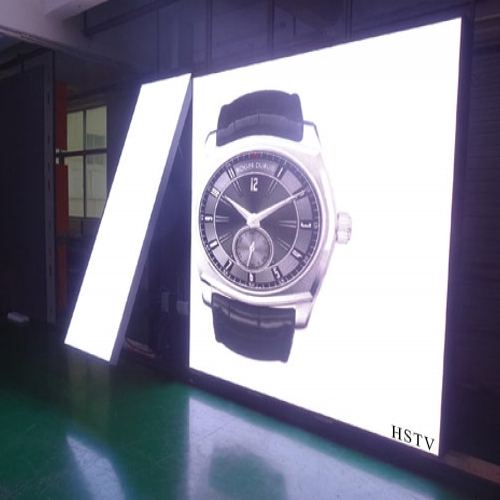

Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

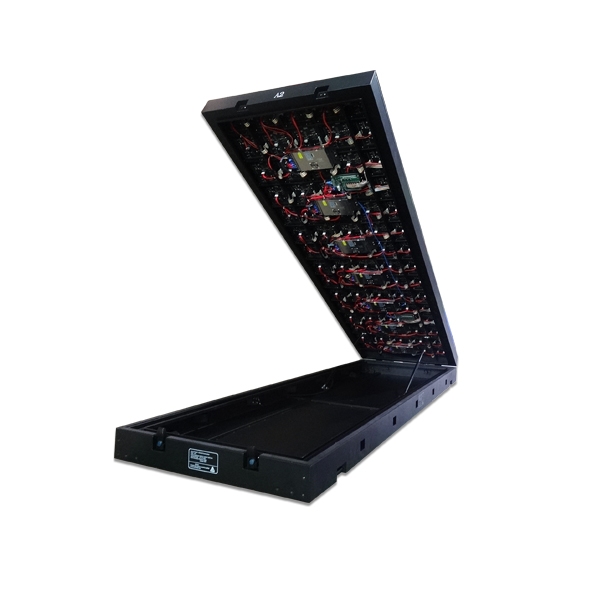

Front Service Cabinet

It features a front service cabinet which makes it ideal to use at any place. The cabinet is easy to service and slice freely which saves on maintenance costs. The display can be directly mounted on wall without help of sophisticated tools.



Front Open Design

Its front service design makes it easy to install and carry. The ultra-lightweight saves on transportation cost and unique design allows mounting on the wall without any tools. There is no maintenance cost, thus it also saves on maintenance costs.



En Kaliteli Malzeme,Moduller ve Çipler

Malzemeler,moduller ve çipler özenle seçiliyor.Malzemelerimizi tanınmış firmalardan almaktayız.Çiplerimizi en önde gelen büyük markalardan almaktayız Cree(USA),Nichia(Japan)Epistar,Optp(Taiwan).Entegrelerimiz MBI,TMS,PWM ve MingYangdan alınmaktadır.Bu üretici firmalar çok kaliteli ürünler satmakla ünlüdürler.

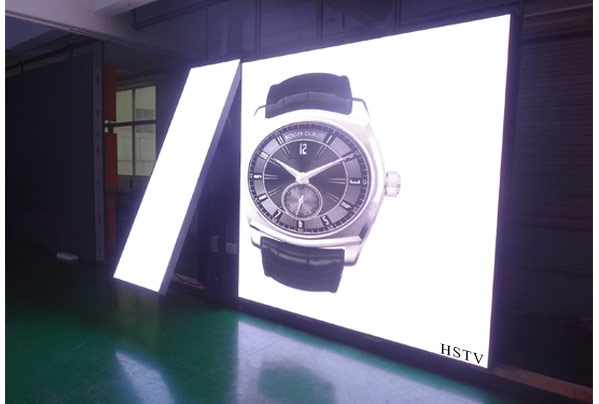

Simplified Structure - Easy to Install

The Front Maintain LED Display can be easily mounted on the wall by using its setscrews and L shaped connectors. There is no need of sophisticated tools and there is no need of labor. It saves money for your project as it doesn't require steel installation structure.



Bottom Safety Lock

The Front Maintain LED Display features a safety lock on the bottom which enhances its safety. The easy-to-open safety lock can be opened very easily. Mounting and unmounting the display becomes very easy with the safety lock.

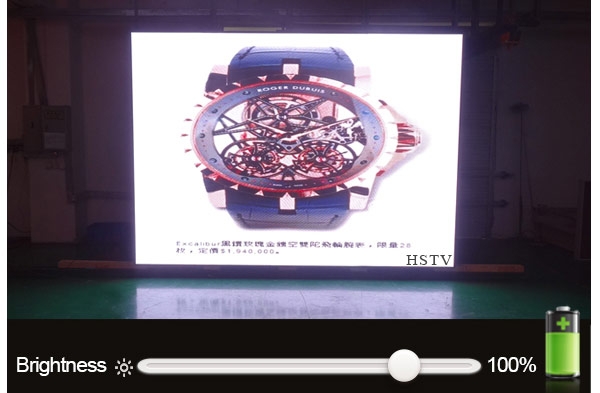

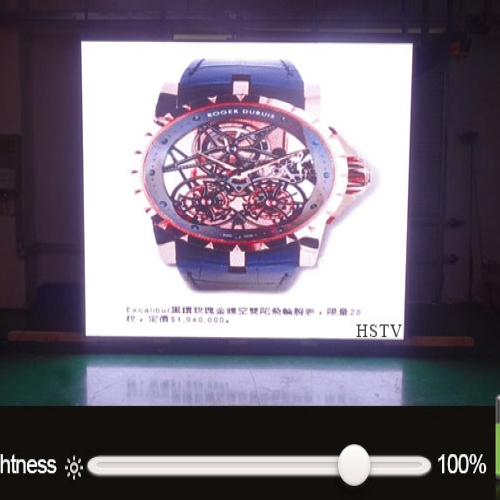

Automatic Brightness Adjustment - Save Electricity

The display has a multi-functional card with works with sensor. The display can adjust the brightness automatically according to the system. It presents you a clearer picture and also saves some electricity.



Customized Cabinet Sizing

The front service cabinet is designed in standard size but can be customized as per your needs. You may change the design as per the area of installation. Various screen sizes splice freely according to the environment of installation place.

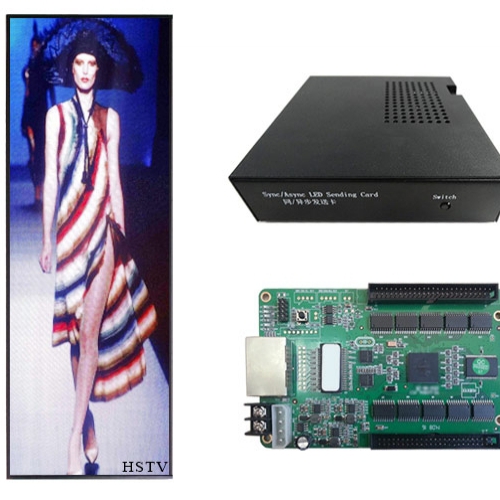

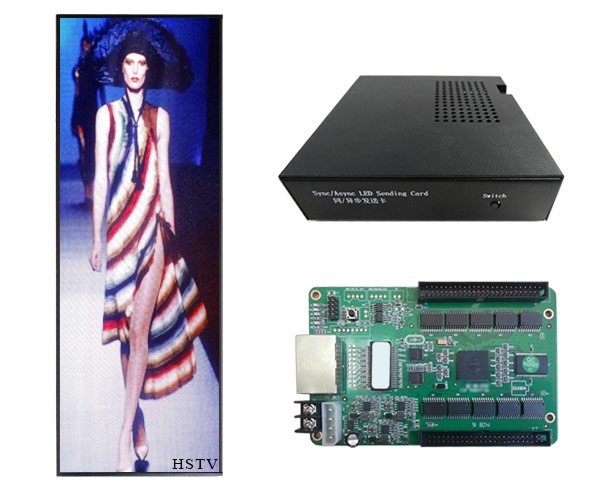

ECSR control card

Front service cabinet features ECSR control system that supports Wi-Fi, 3G and USB-stick to release program. It supports different output formats including pictures, videos and text. It also supports UTP (Unshielded Twisted Pair) to connect LED screen and control the system within 100 meters.

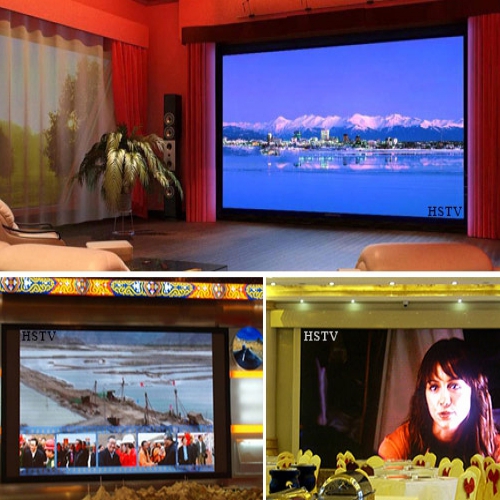

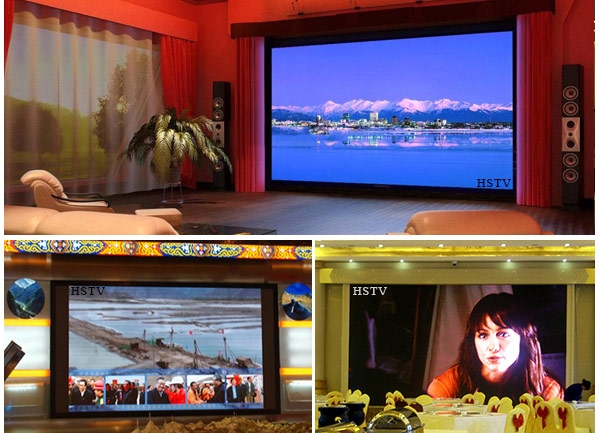

Uygulama

Ön Bakımlı LED Göstergesi birçok amaçla ve birçok yerde kullanılabilir. Reklam, afiş ekranı, gösteri, video görüntüler, eğitim amaçlı ve çok daha fazlası için kullanılabilir.


LED Lamp
Type SMD3528
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.2kg
LED Cabinet
The entire screen size(W*H*D) 1000×2440×190mm
Working Temperature -15℃~50℃
Display Dimension(W*H) 960×2400mm
Humidity 15%~85%
Resolution W*H(dots/set) 192×480=92160dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Steel
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 118kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥1800cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 140(Horizontal),140(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 6m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 1080W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 400W/H
Life-span 100,000 hours
Refresh Rate ≥1000Hz
Protection Level(front/back) IP54/IP43
Drive Mode/Driver Position Constant driving 1/16 Scan,Combined diver board
Malfunction Dot Rate less than 0.0001
Display Function Text,Graphics,Video
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB
