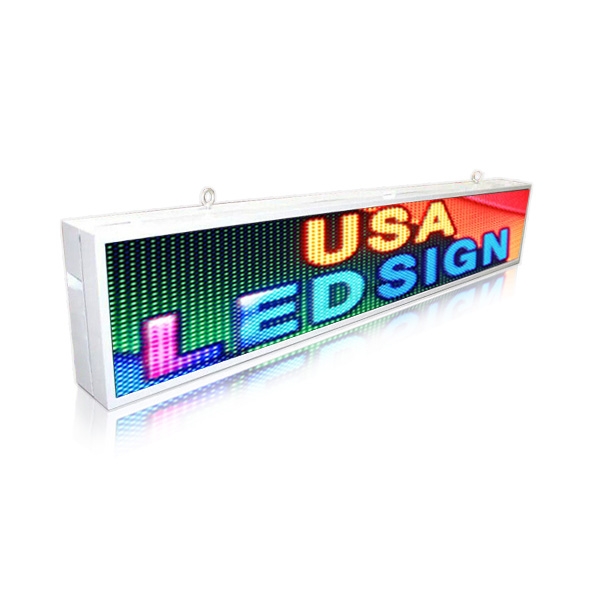

P8 Outdoor SMD Full Color 1320×424mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

Full color display makes more outstanding advertising effect

SMD outdoor HD full color door head led screen features with excellent waterproof performance, front maintain and can be arbitrary splicing. Upgrade the entire level of the install places and also help to create better advertising effectiveness.



Perfect image

High precision optical design of LED create wide viewing angel and color uniformity which also insure perfect video picture can be presented in any viewing angle

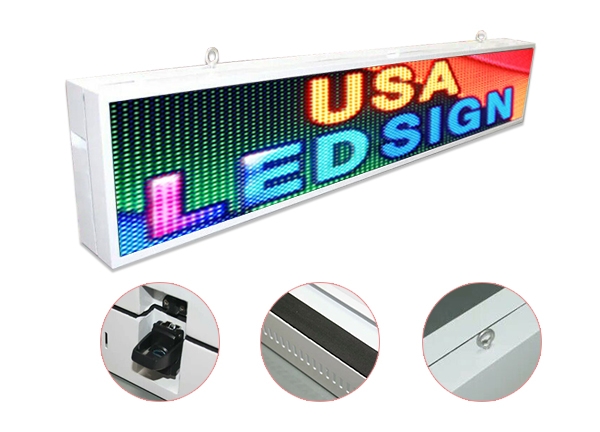

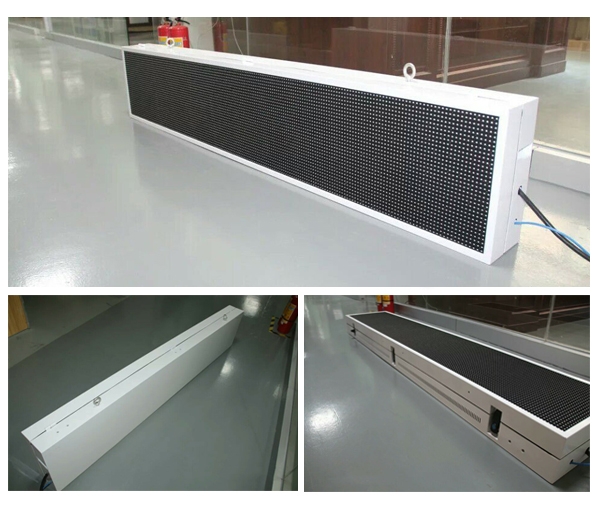

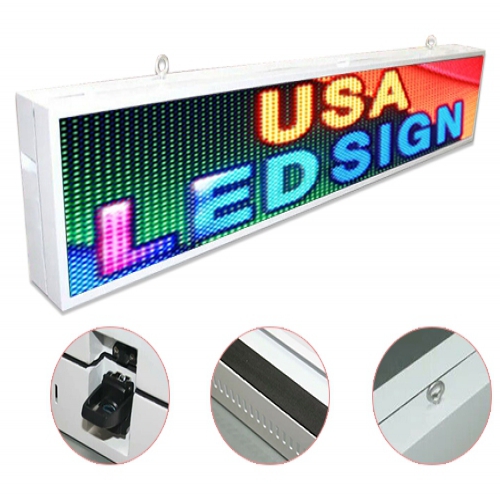

Superior manufacture materials Specialized production

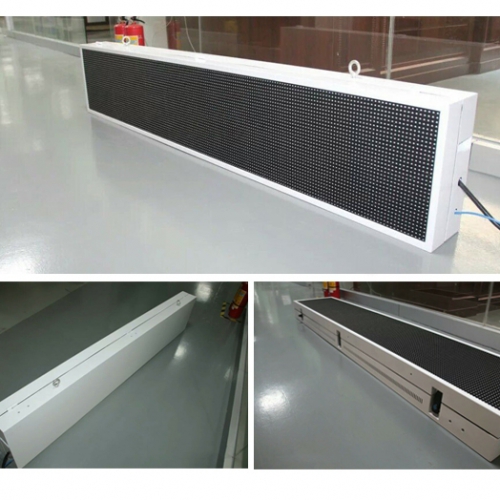

Ultra-lightweight die casting aluminum cabinet adopted quick lock system ensure fast installation and easy to transportation.

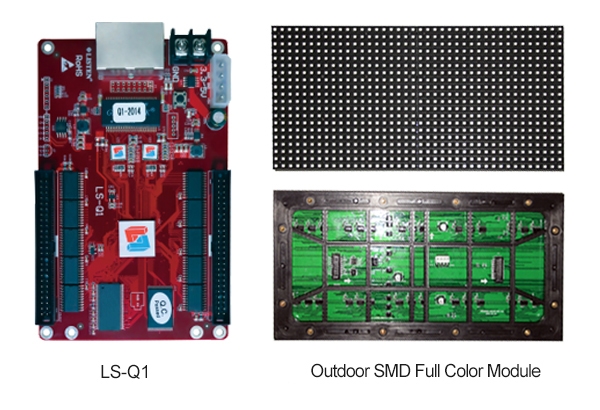

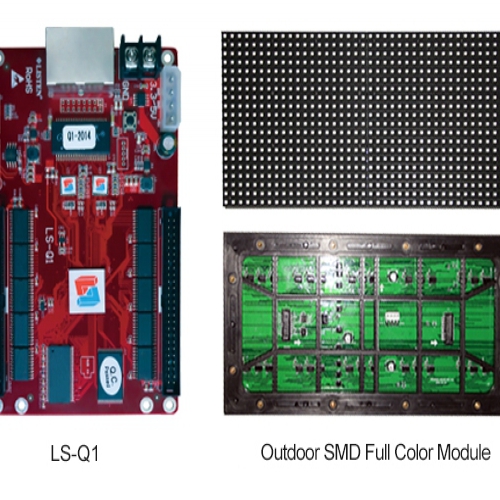

Big brand component Stable performance

High quality MBI diver IC, stable system controller of LISTEN and advanced encapsulation equipment ensure the quality and life span of product.

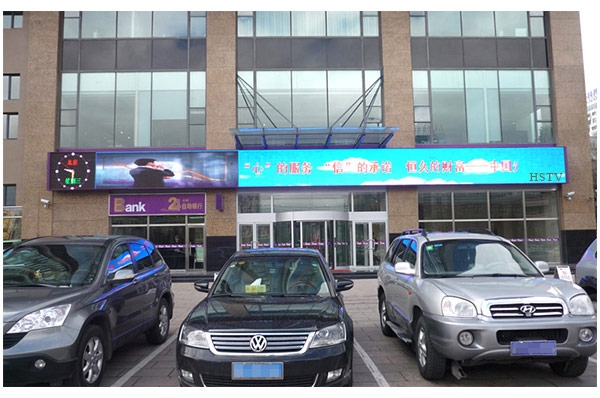

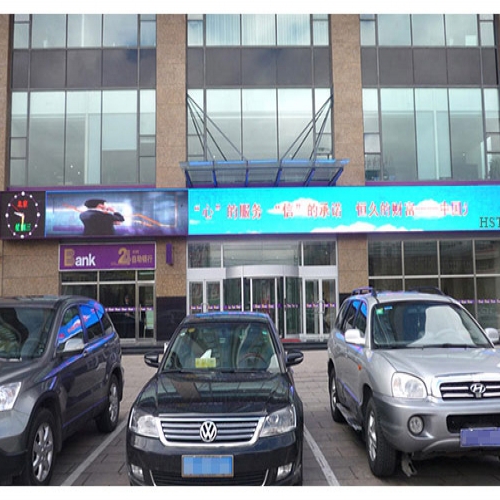

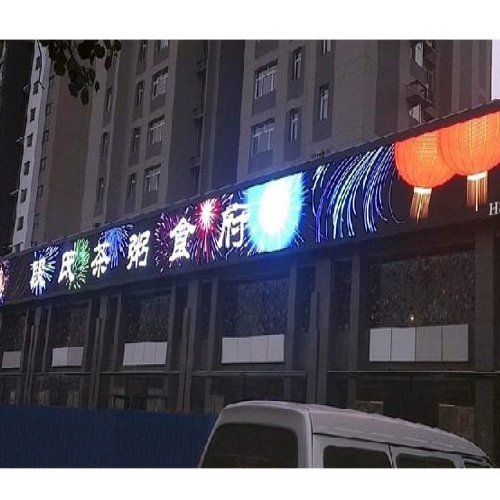

Decorate store and attractive customers

Varied play formats and rich playing content of door head full color led screen transfer a large amount of information to customer and catch their eyes which make more outstanding promotion effect.

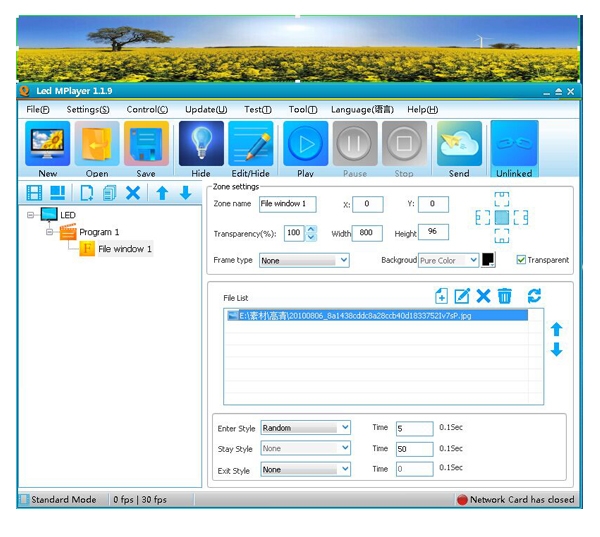

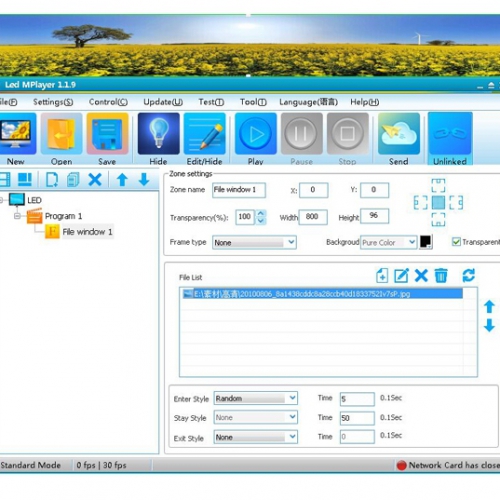

Easy to operate Various playing function

Easy to operate software and support playing colorful words, animation background and FLASH clock display etc. Asynchronous and synchronous control system change easily.

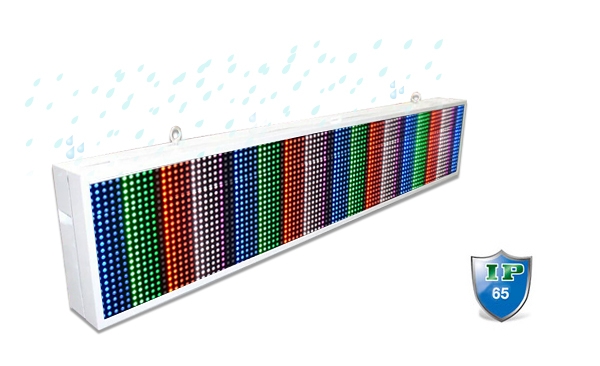

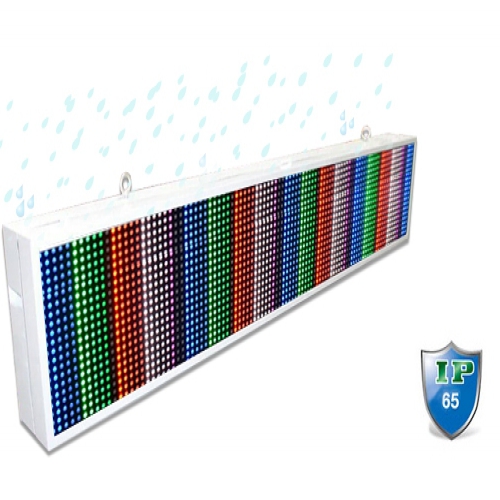

High protection rate Safe and secure

IP65 waterproof and dustproof suitable for outdoor use and save the cost of maintain.

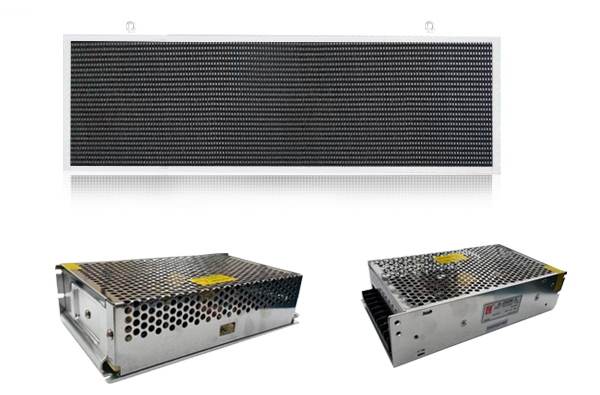

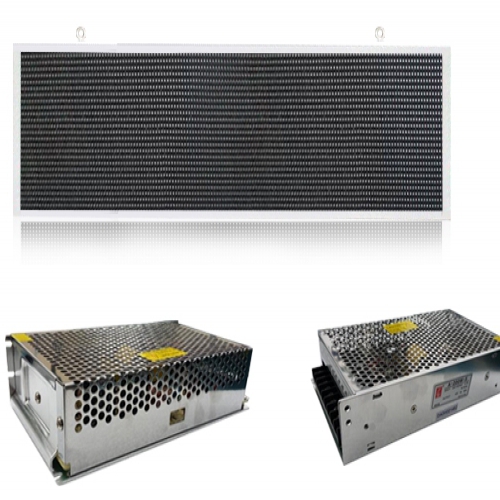

Big brand power supply

Switching power supply offered by famous brand CZCL features with high stability, low temperature and long life span.

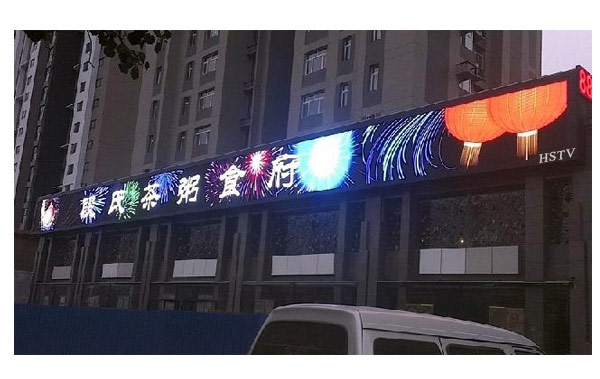

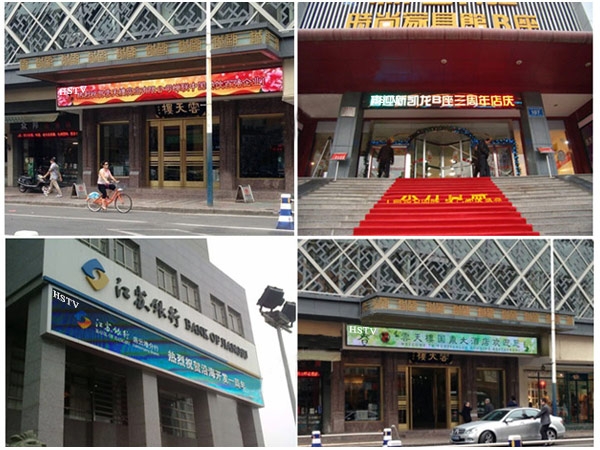

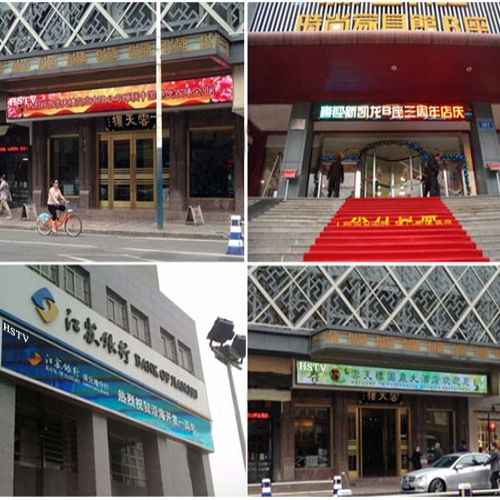

Uygulama

Tam renkli kapı kafası ledli ekran, marka tekelinde mağaza, banka, zincir mağaza vb. Gibi alanlarda yaygın olarak kurulmuştur. Mağazanızın kapısının üstüne bir tane yüklediniz mi?


LED Lamp
Type SMD3535
Arrangement 1R1G1B
Brand Kinglight
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 8mm
Module Resolution 32×16=512(Dots)
Module Size 256×128mm
Module Weight 0.35kg
LED Cabinet
Pixel Density 15625 Dots/sqm
The entire screen size(W*H*D) 1320×424×200mm
Display Dimension(W*H) 1280×384mm
Display Resolution 160×48=7680(Dots)
Module Quanty /Cabinet 5×3=15(Pcs)
Cabinet Material Steel
Cabinet Weight 29kg
Brightness >7500cd/sqm
Viewing Angle 120(Horizontal), 120(Vertical)
Nearest Viewing Distance 11m
Total Power Consumption (Max) 320W/H
Total Power Consumption (Average) 96W/H
Display Function Text, Graphics, Video
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/4 Scan, Combined diver board
Frame Frequency no less than 60 frame/sec
Input Voltage AC110-220V±10%, 50/60Hz
Output Voltage DC-5V, 40A/60A/80A
Color Grayscale 16bit
Gray Scale per Color 65536 level
Color Processing R(1024)×G(1024)×B(1024)
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
MTBF(mean time between failures) 5000 hours
Life-span 100, 000 hours
Protection Level(front/back) IP65/IP54
Malfunction Dot Rate less than 0.0001
Working Temperature -15oC-50oC
Humidity 15%-85%
Control System
Control Mode Asynchronization
Control System Sending Card, Receiving Card, Receiving HUB
Software Led Mplayer
Language Chinese, Traditional Chinese, English, Russian
Control Card Input RJ45
Input Signal AVI/MPG/MPEG/TXT.etc
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Communication Type 3G(Sold separately), Net cable, Serial ports, Android mobile system control
Certificate CE, ROHS, FCC, ISO9001, TUV
