PH2 Indoor Rental LED 576×576mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

İç Mekan Led Ekran teknolojilerinde, yurt dışında üretilen ve aynı zaman da Türkiyeye Led Granti firması tarafından sizler için ithal edilen ürünlerimizi. Gerek mağaza gerek avm içlerinde sorunsuzca ürün görsellerinizi tanıtmak üzere bizlerden bilgi alabilirsiniz.

Star Product, Superb Quality

The Ultra HD LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray level ensures the picture quality remains seamless.

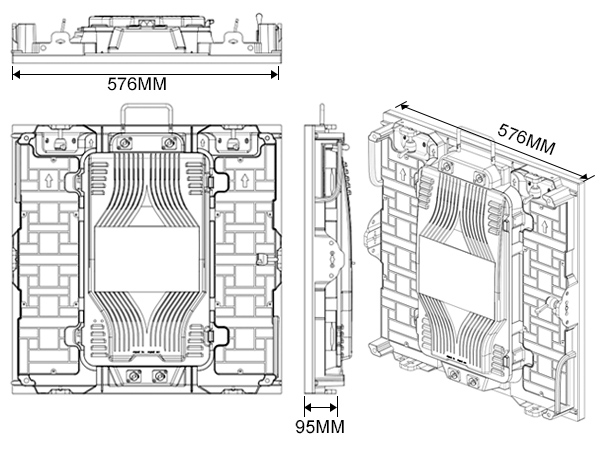

Standard Kabin Boyutları

Aliminyum-magnezyum olan ultra hafif kabinlerimiz taşıması kolay olup kendisine daha çok güç ve dayanıklılık verir.Gösteri için hazırlanan LED ekranı mükemmeliyeti verir.Yüklemesi oldukça kolaydır.Ayrıca kolay kitle-aç sistemi hiçbir teknolojik alete gerek duymadan kolayca yükleme yapabilirsiniz.



Seamless display and visual effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.



Seamless Splice

The Ultra HD LED Display can be installed within minutes, without any special tools. You may configure the Military Level LED Display as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.

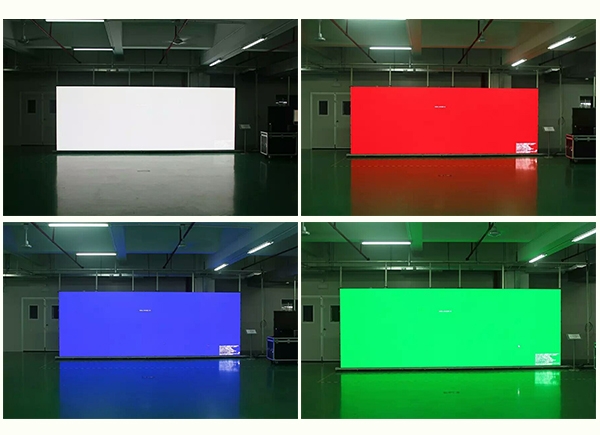

Perfect Brightness and Chromaticity Calibration

Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice



Removing Ghost Images

Ghost images are a common problem with ordinary LED displays. Our Military Level LED Display is known for offering best quality picture and it removes the ghost images to offer a clearer picture. It's uses driver ICs with inbuilt functions to remove the ghost effects and blur from pictures, leaving behind crystal clear pictures and videos.



Yüksek Çözünürlük

Ultra HD LED ekranları en son teknoloji ile üretilmiş olup tarama özelliği olan ve yüksek parlaklıkla birlikte en yüksek çözünürlüğü vermektedir.1000Hz ile tazelemek ve çözünürlüğü destekler bu da en kalteli resimleri,videoları ve yazıları vermektedir.



Sıkı Ömür Testi

Tüm ürünler sıkı bir ömür testine tabi tutulur. 72 saat yaşlandırma testi, lamba, loş ışık, renk farkı ve mozaik kullanılmadan yapılır. Ürün ömür testinden geçerse, sizin için en iyi kalitenin sağlandığından emin olarak piyasaya sürülür.


Pixel Pitch 2mm
Pixels Density 250000dots/sqm
Pixel Configuration 1R1G1B
Package Mode SMD1010
Chip Parameters Red (620-625nm) IV:(18-30mcd)
Chip Parameters Green (516-530nm) IV:(50-75mcd)
Chip Parameters Blue (465-475nm) IV:(6.5-9.5mcd)
Module Size(W*H*D) 192*96*14.66mm
Module Weight 0.155kg
Module Resolution(W*H) 96*48dots
Module Max Power 22W
Drive Type Constant drive
Scan Mode 1/24scan
Port Type HUB75E
Brightness of White Balance >1400cd/sqm
Bracket Size 192mm*96mm
Cabinet Dimension(W*H*D) 576*576*85mm
Cabinets Material Aluminum-magnesium alloy Cabinet
Cabinet Weight 25kg
Module Quanty /Cabinet 3×6=18(Pcs)
Cabinet Resolution(W*H) 288×288=82944(Dots)
Power Supply 5V/60A*2pcs
Thermal Discharge fan 1pcs
Best Viewing Distance 2m-10m
Best Viewing Angle 160°(W) 120°(H)
Temperature storage:-35oC-85oC; working:-20oC-50oC
Relative Humidity 10%-95%
Working Voltage AC220V±10%
Average Power Consumption 400W/sqm
Max.Power Consumption <1200W/sqm
Current <20mA(single LED)
CPU Pentium4 or above P4
Operation System Microsoft Windows 10 ,Windows 7 and XP
Control Method Synchronization
Driving Device Constant drive IC
Refresh Frequency >1200HZ
Color Grayscale / Gray Scale per Color 16 bit / 65536 level
Life-span 50000 hours
MTBF >9000hours
Power Switch Automatic switch
Display Mode >800*600/1024*768
Protection Level(front/back) IP31/IP54
Software Nova Studio
Language Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese,German,Russian
Certificate CE, ROHS, FCC, ISO9001, TUV
