P4 Indoor Rental LED 512×512mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

Concert LED Screen

The Concert LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition. The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.



Hot Product in 2015

The Concert LED Screen has remained the hottest product in 2015 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2015.



Standard Kabin Boyutları

Aliminyum-magnezyum olan ultra hafif kabinlerimiz taşıması kolay olup kendisine daha çok güç ve dayanıklılık verir.Konser için LED ekranı mükemmeliyetle hazırlanmıştır.Yüklemesi oldukça kolaydır.Ayrıca kolay kitle-aç sistemi hiçbir teknolojik alete gerek duymadan kolayca yükleme yapabilirsiniz.



Perfect Brightness and Chromaticity Calibration

Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.



Unique Design - Easy to Install & Transport

The cabinet of Concert LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime.



Seamless Display and Visual Effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.


LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)

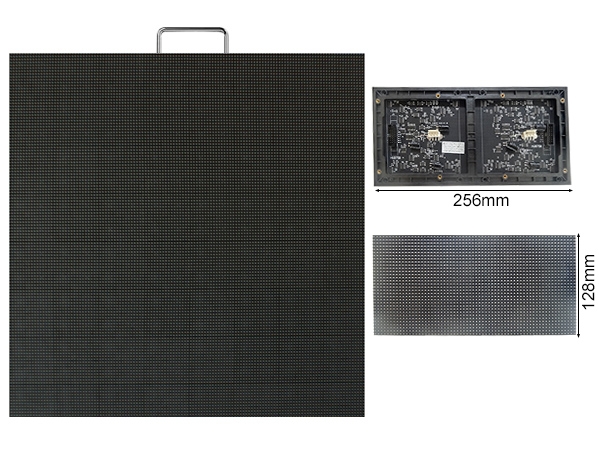

LED Module
Pixel Pitch 4mm
Module Size 256×128mm
Module Resolution 64×32=2048(Dots)
Module Weight 0.13kg
LED Cabinet
Pixel Density 62500 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 128×128=16384(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 512×512×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 2×4=8(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 8kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >1300cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 7m
Protection Level(front/back) IP43/IP54
Power Consumption (Max) 1000 w/sqm
Power Consumption (Average) 300 w/sqm
Malfunction Dot Rate less than 0.0001
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10, Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
