P4 Indoor Rental LED 256x128mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

Perfect Brightness and Chromaticity Calibration

Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.

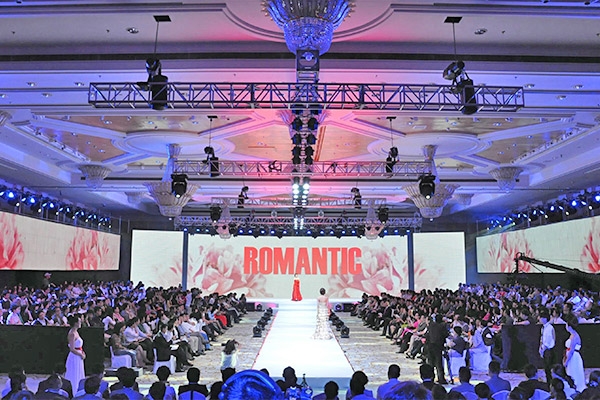

Concert LED Screen

The Concert LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition. The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.



Hot Product in 2016

The Concert LED Screen has remained the hottest product in 2016 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2016.

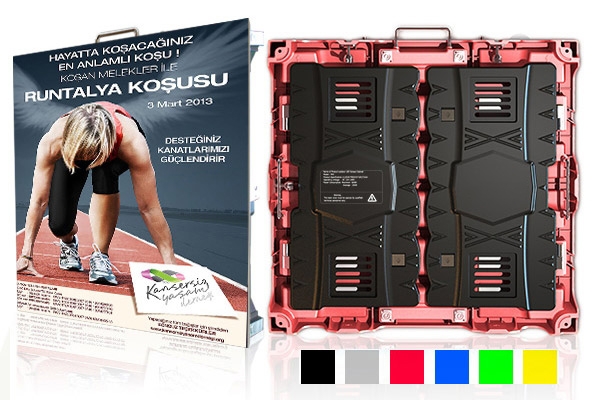

Standard Kabin Boyutları

Aliminyum-magnezyum olan ultra hafif kabinlerimiz taşıması kolay olup kendisine daha çok güç ve dayanıklılık verir.Gösteri için hazırlanan LED ekranı mükemmeliyeti verir.Yüklemesi oldukça kolaydır.Ayrıca kolay kitle-aç sistemi hiçbir teknolojik alete gerek duymadan kolayca yükleme yapabilirsiniz.



Seamless Display and Visual Effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.

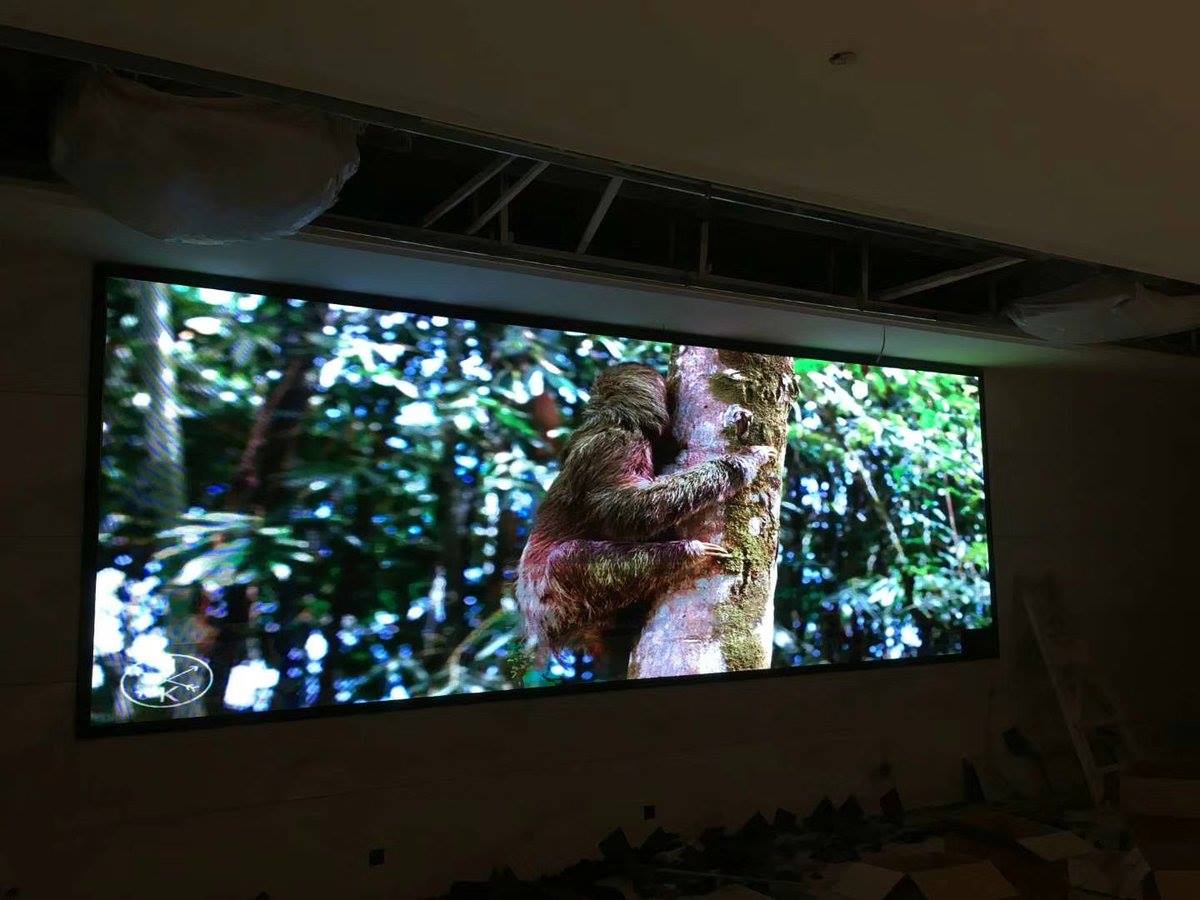

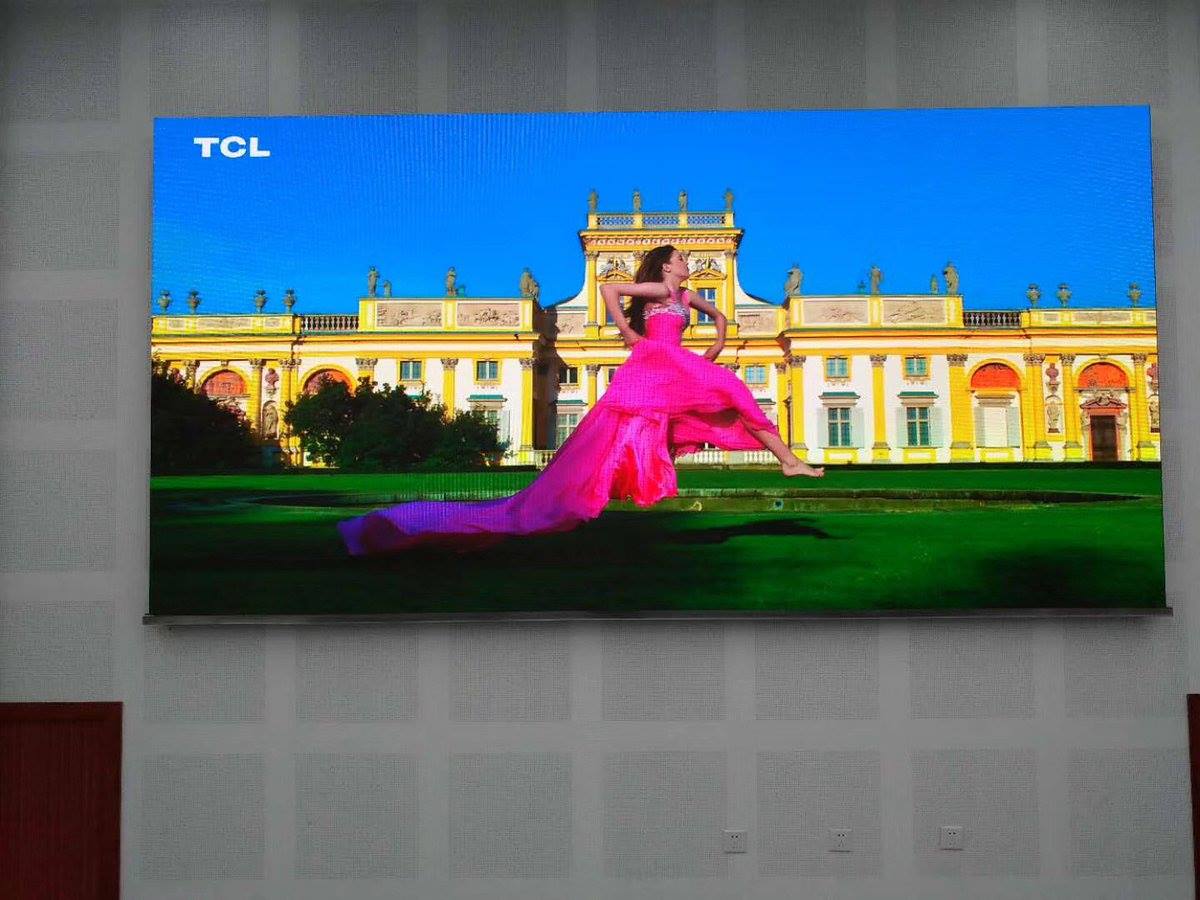

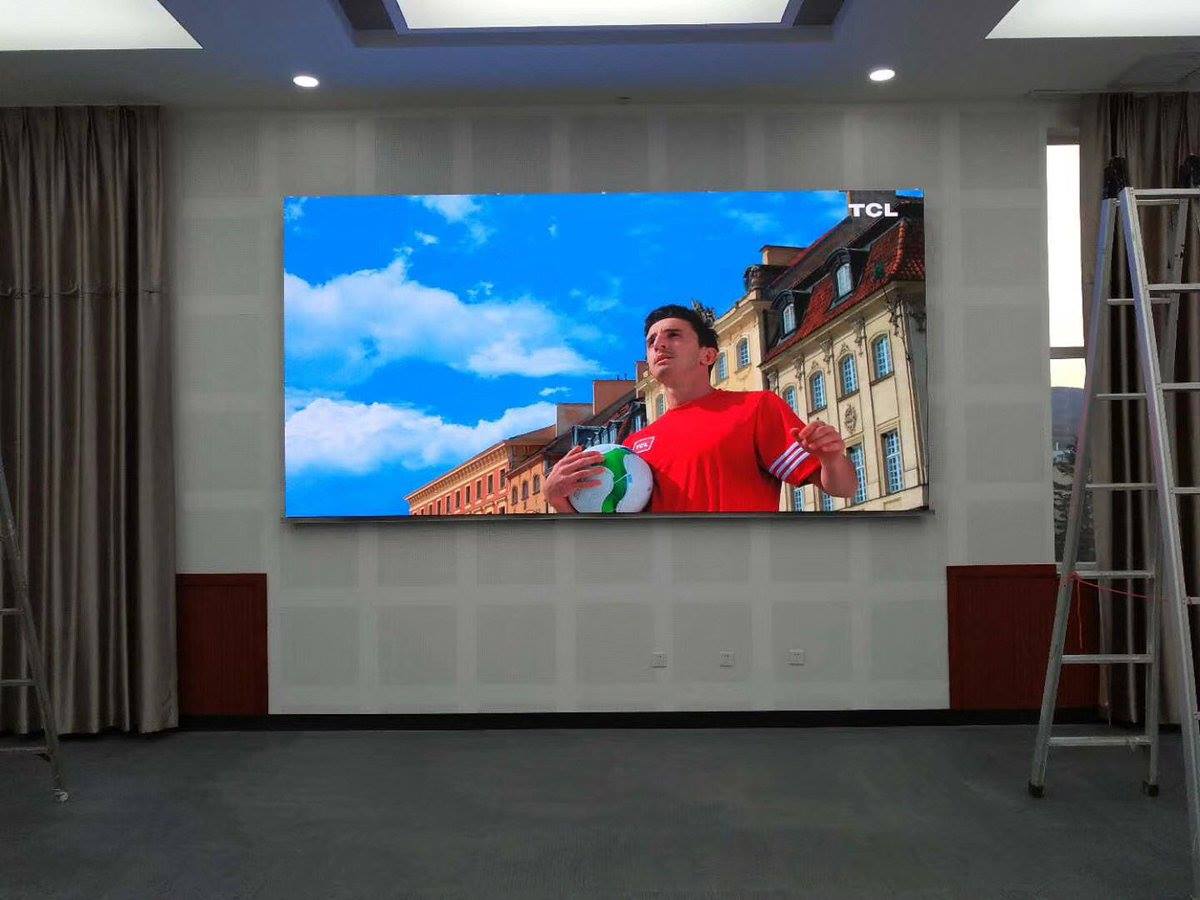

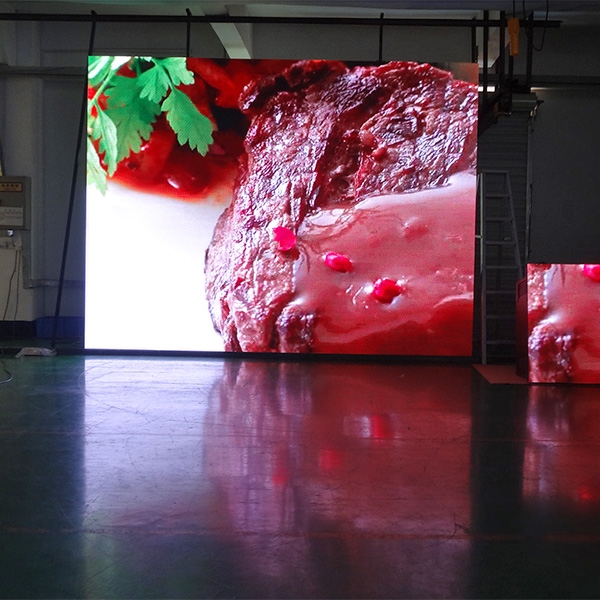

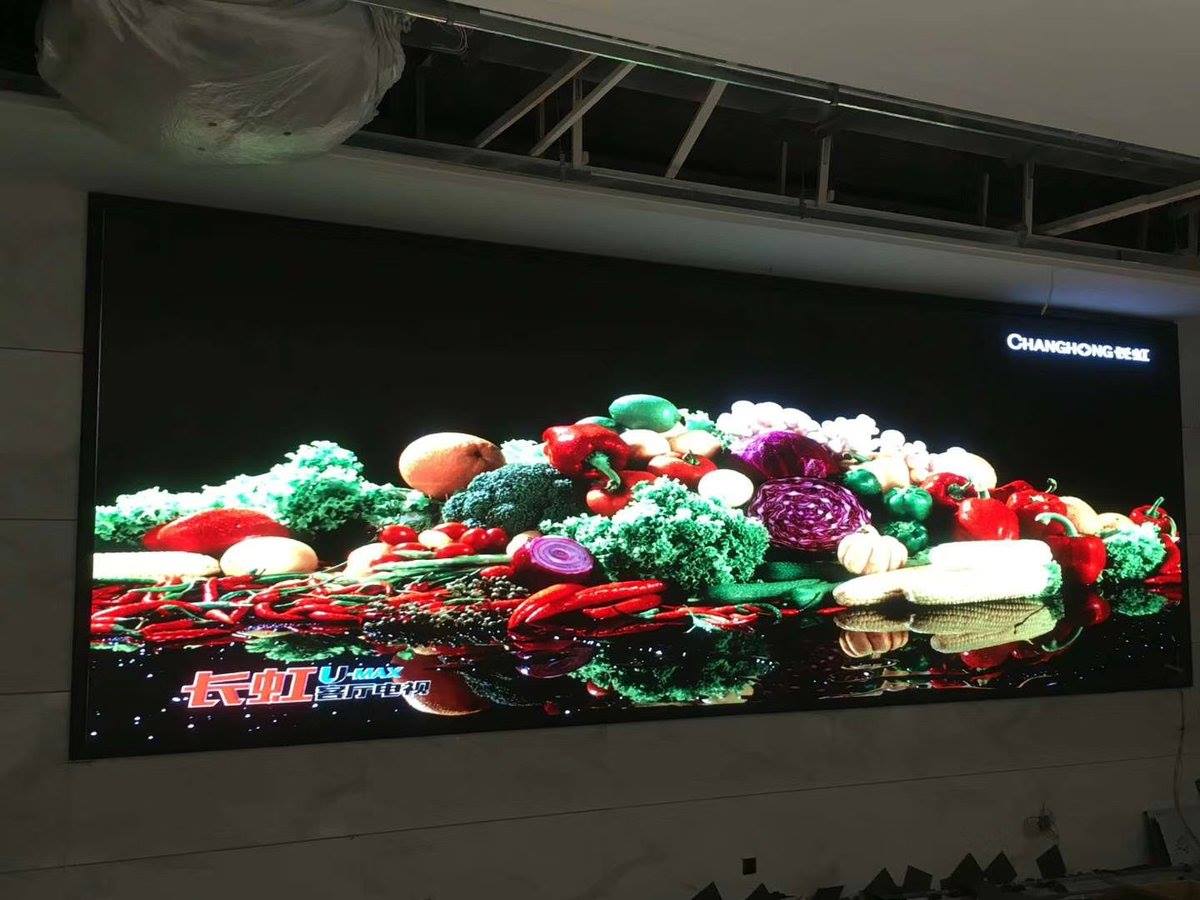

Uygulama

Konser LED Ekranı birçok amaçla ve birçok yerde kullanılabilir. Reklam, afiş ekranı, gösteri, video görüntüler, eğitim amaçlı ve çok daha fazlası için kullanılabilir. Sokak promosyonu, alışveriş merkezleri, sahneler, stadyum ve daha birçok kapalı mekanda açık alanlarda kullanabilirsiniz.


LED Lamp
Type SMD2121
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 4mm
Module Size 256×128mm
Module Resolution 64×32=2048(Dots)
Module Weight 0.3kg
LED Cabinet
Pixel Density 62500 Dots/sqm

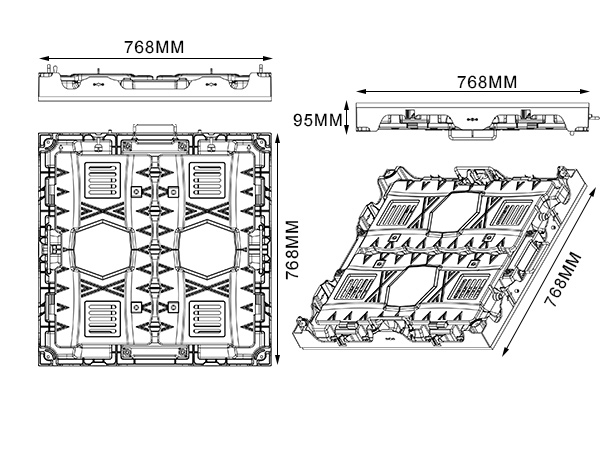

Cabinet Dimension(W*H*D) 768×768×95mm
Cabinet Resolution 192×192=36864(Dots)
Module Quanty /Cabinet 3×6=18(Pcs)
Cabinets Material Aluminum-magnesium alloy Cabinet
Cabinet Weight 18kg
Brightness >3000cd/sqm
Viewing Angle 140(Horizontal), 140(Vertical)
Nearest Viewing Distance 7m
Power Consumption (Max) 1000 w/sqm
Power Consumption (Average) 300 w/sqm
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/8 Scan,Combined diver board
Display Function Text,Graphics,Video
Frame Frequency no less than 60 frame/sec
Input Voltage AC110-220V±10%, 50/60Hz
Output Voltage DC-5V, 40A/60A/80A
Color Grayscale 16bit
Color Processing R(1024)×G(1024)×B(1024)
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures) 5000 hours
Life-span 100, 000 hours
Protection Level(front/back) IP43/IP54
Malfunction Dot Rate less than 0.0001
Working Temperature -30oC-50oC
Humidity 15%-85%
Control System
Control Mode Synchronization/Asynchronization
Control System Sending Card, Receiving Card, Receiving HUB
Software LED Studio
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German,
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
Input Signal AVI/MPG/MPEG/TXT.etc
PC Operating System Microsoft Windows 10, Windows 7 and XP
Communication Type Net cable; 3G, WIFI(Sold separately)
Certificate CE, ROHS, FCC, ISO9001, TUV



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
