PH4.81 Indoor Rental LED Screen 500×500mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

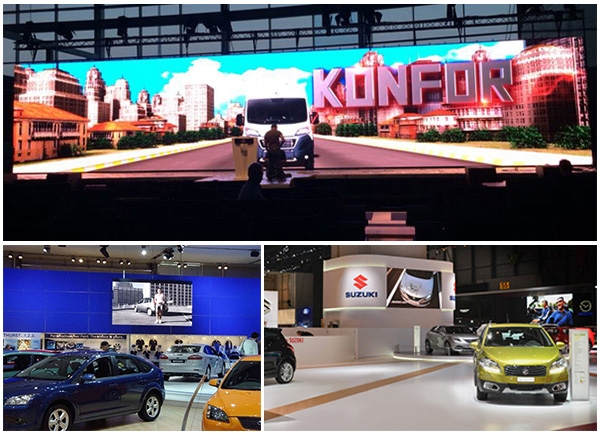

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

PH4.81 Concert LED Screen

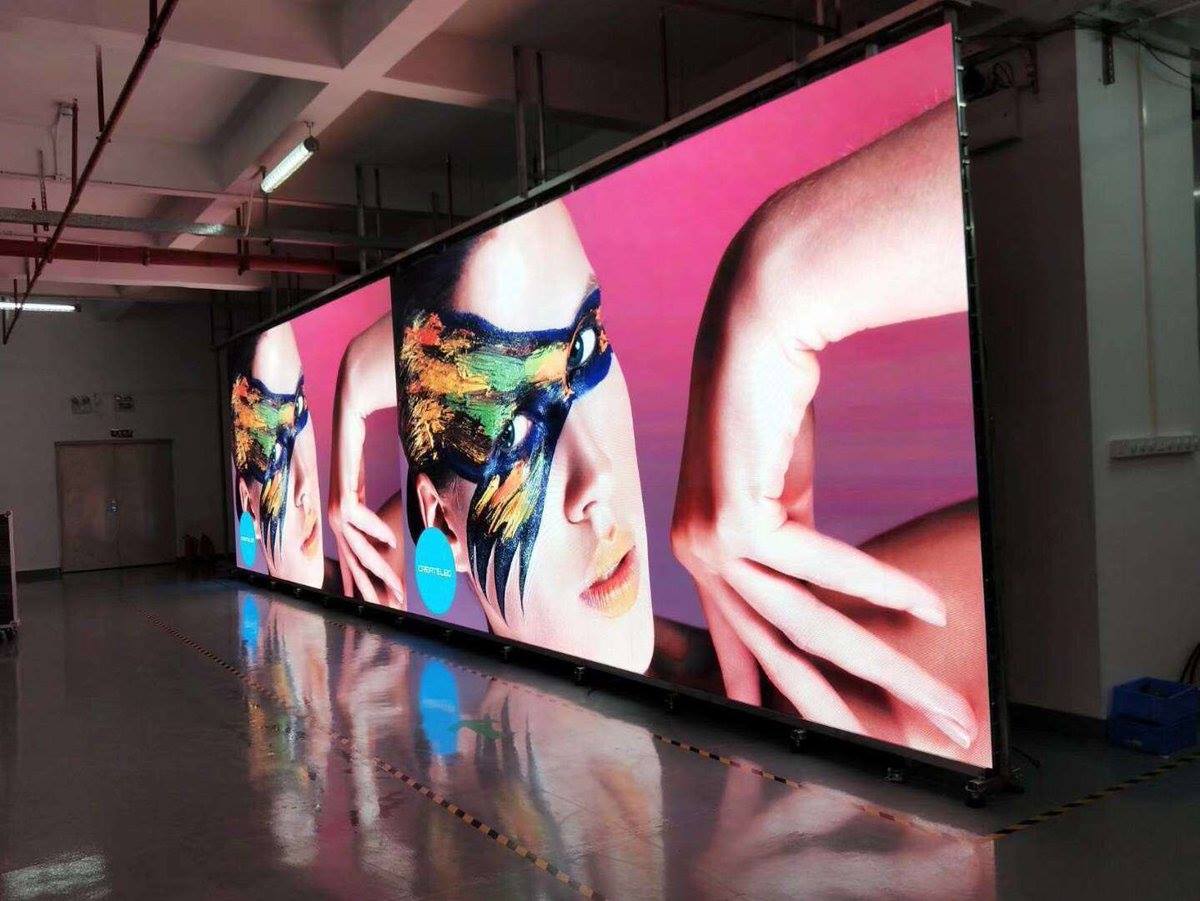

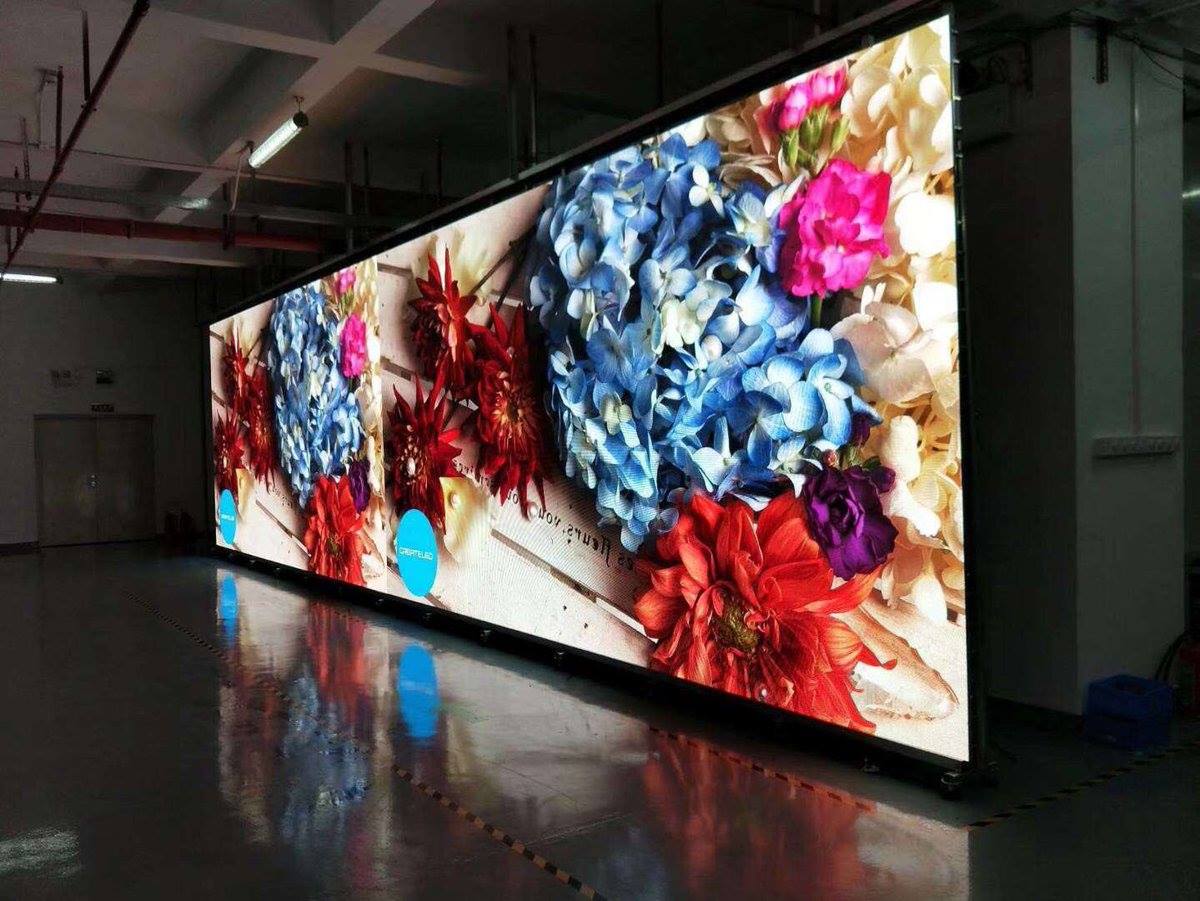

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.



Assembled with Lightweight Modules

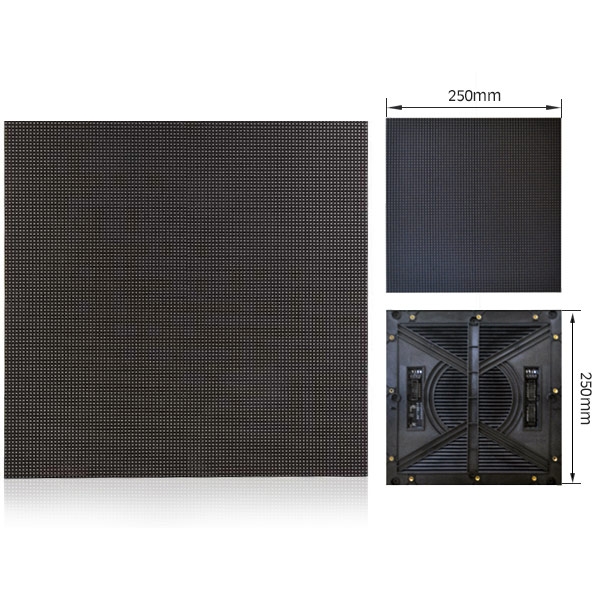

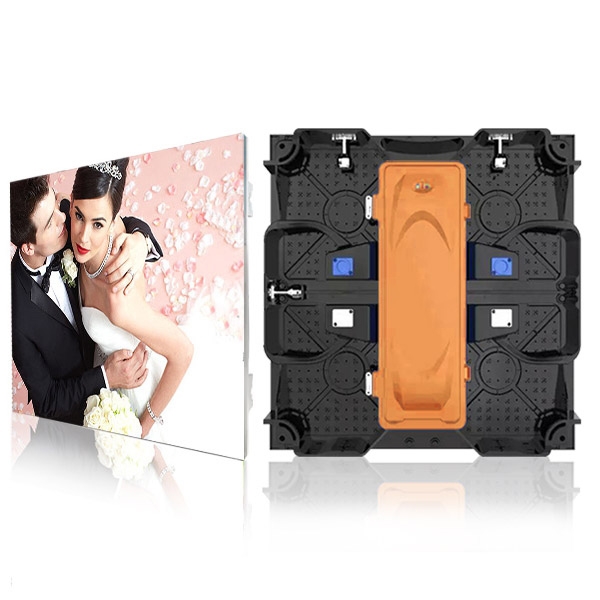

The display is assembled with lightweight modules, making it easy to transport and install. No skills and special tools are required to install it. The 500x500mm module is assembled using four 250x250mm modules and aluminum-magnesium cabinet. Full module is superlight.



Best Indoor Performance

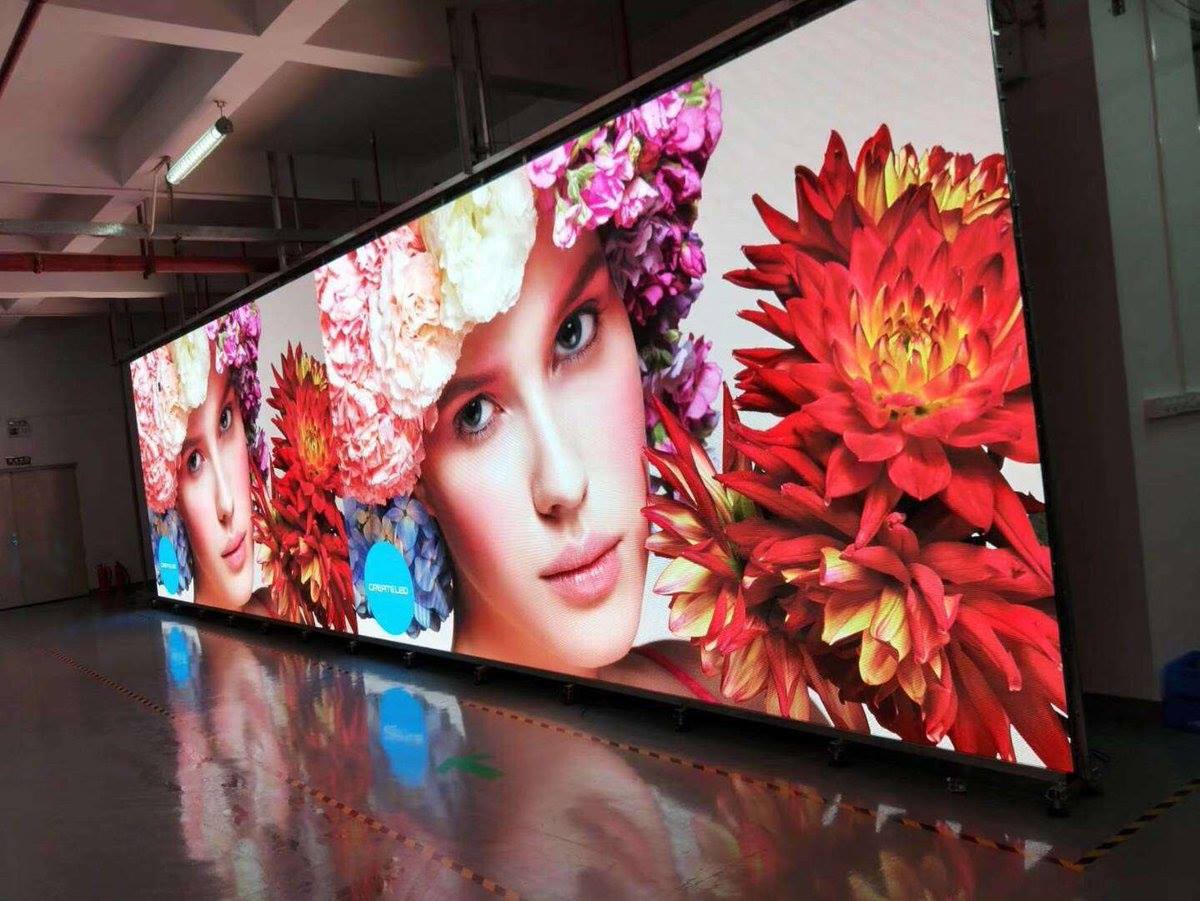

The displays are created for supreme quality indoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in indoor areas.



Geniş Bir Kitle İçin Geniş Görünüm Açışı

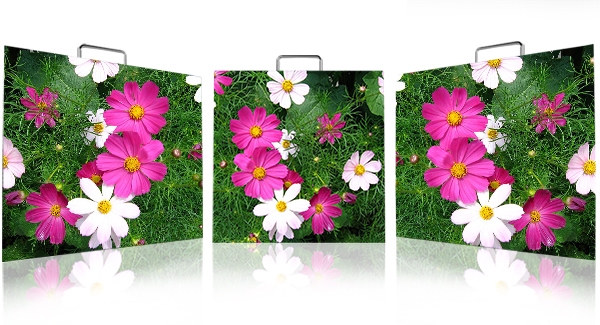

LED ekran modülü 140° görünüm açışı ile daha fazla kişiye ulaşacaktır.Resim kalitesi her uzaklıktan aynı şekilde pürüzsüz bir görüntü vermektedir.Buda kalabalık mekanlar için çok uygundur



Yüksek Çözünürlük

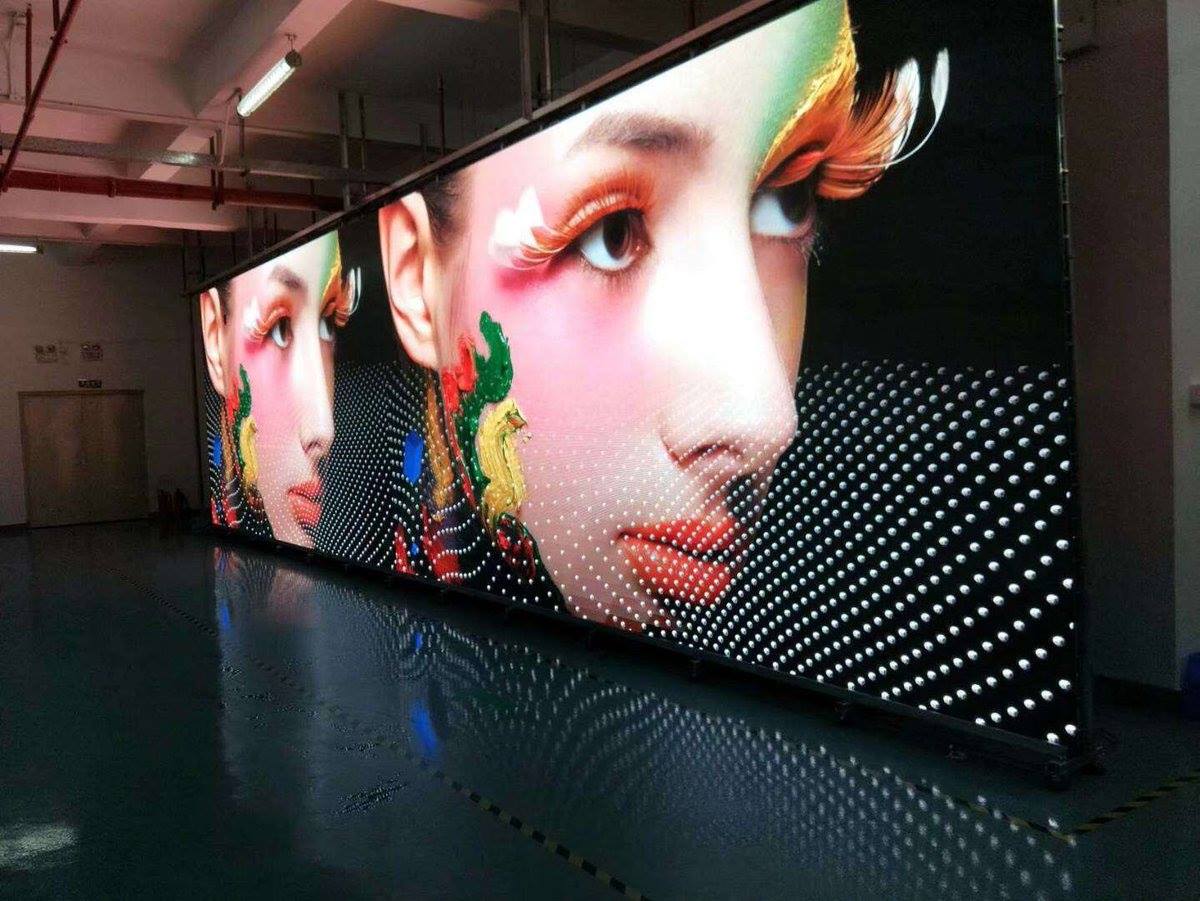

P4.81 konser için olan LED ekranları en son teknoloji ile üretilmiş olup tarama özelliği olan ve yüksek parlaklıkla birlikte en yüksek çözünürlüğü vermektedir.1000Hz ile tazelemek ve çözünürlüğü destekler bu da en kalteli resimleri,videoları ve yazıları vermektedir.



Hot Product in 2015

The P4.81 Concert LED Screen has remained the hottest product in 2015 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2015.


LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 4.81mm
Module Size 250×250mm
Module Resolution 52×52=2704(Dots)
Module Weight 0.2kg
LED Cabinet
Pixel Density 43222 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 104×104=10816(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 500×500×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 2×2=4(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 6.25kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >1000cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 8m
Protection Level(front/back) IP43/IP54
Power Consumption (Max) 1000 w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 350 w/sqm
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%

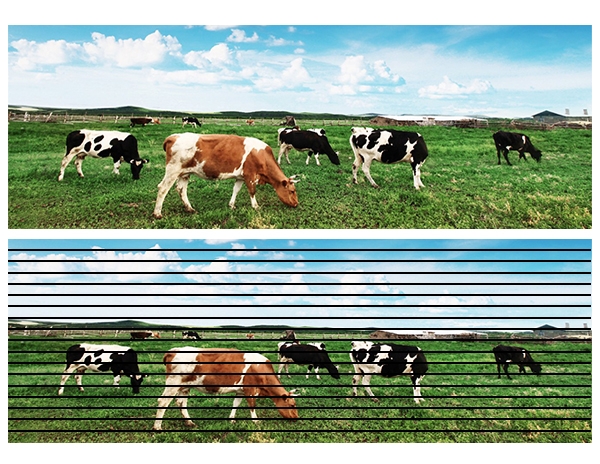

Refresh Rate >1800Hz
Drive Mode/Driver Position Constant driving 1/13 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
