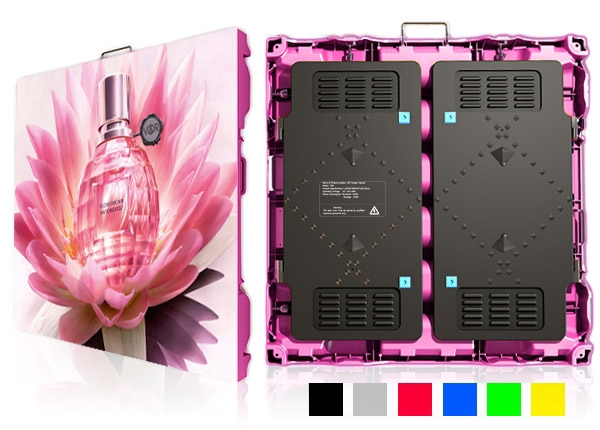

P5 Indoor SMD2121 Rental LED Display 960×960mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

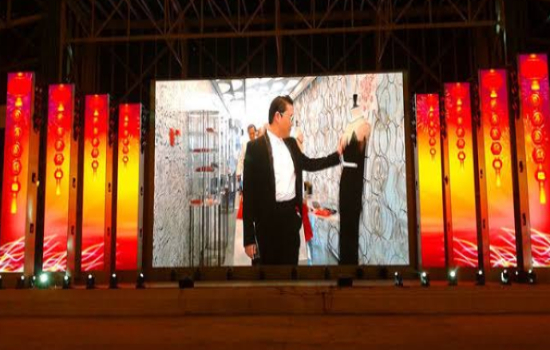

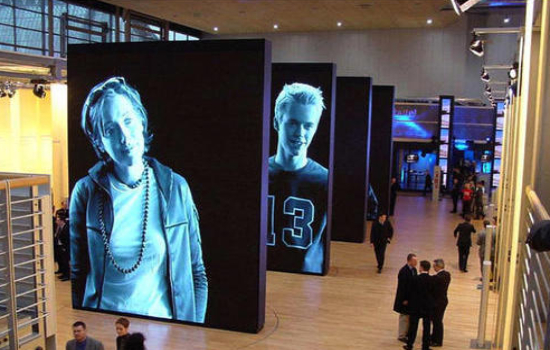

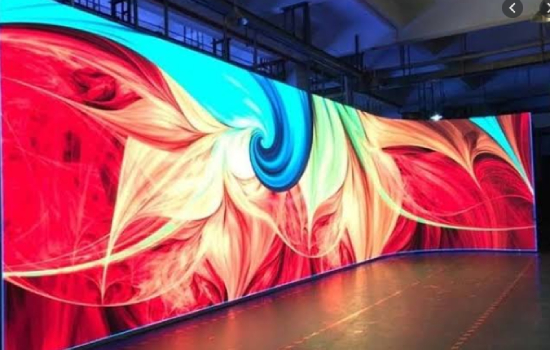

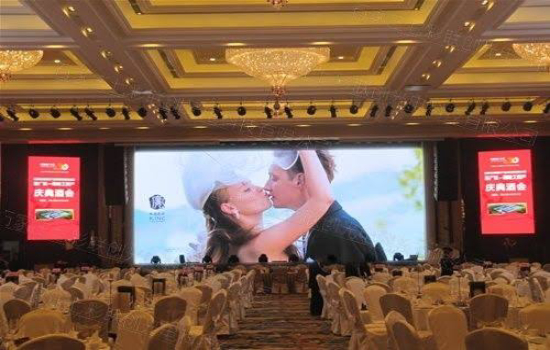

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

PH5 Concert LED Screen

PH5 Concert LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition. The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.



Rental LED Display - Part of Your Life

With its outstanding performance and multipurpose, it will become a part of your entertainment life. Get more information and more entertainment. Choose from a variety of colors and give your life extra bit of entertainment.



Güvenebilceğiniz Marka İsimler

Çiplerimizi,Entegrelerimizi ve Malzemelerimizi en bilindik markalardan almaktayız Cree(USA),Nichia(Japan),Epistar,Opto(Taiwan),MBI,TMS,PWM ve Minyang olmak üzere .Ürünlerimizde en kaliteli malzemeler kullanılmaktadır.Ürünlerimize ekstra hassasiyet ile bakmaktayız. Bu sayede alırken ürün kalitesi ile hiç sıkıntı çekmezsiniz.



Standard Kabin Boyutları

Aliminyum-magnezyum olan ultra hafif kabinlerimiz taşıması kolay olup kendisine daha çok güç ve dayanıklılık verir.Gösteri için hazırlanan LED ekranı mükemmeliyeti verir.Yüklemesi oldukça kolaydır.Ayrıca kolay kitle-aç sistemi hiçbir teknolojik alete gerek duymadan kolayca yükleme yapabilirsiniz.



Seamless Splice

The Fast Lock Rental LED Display can be instalLED within minutes, without any special tools. You may configure the Fast Lock Rental LED Display as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.



Outstanding Indoor Performance

The displays are created for supreme quality indoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in indoor areas.


LED Lamp
Type SSMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)

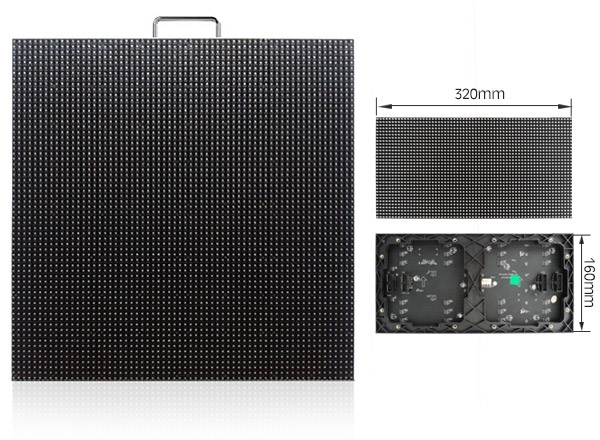

LED Module
Pixel Pitch 5mm
Module Size 320×160mm
Module Resolution 64×32=2048(Dots)
Module Weight 0.4kg
LED Cabinet
Pixel Density 40000 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 192×192=36864(Dots)
Input Voltage AC110-220V±10%, 50/60Hz

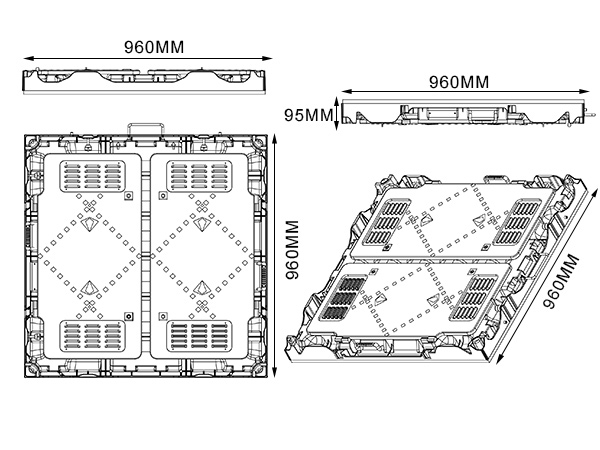

Cabinet Dimension(W*H*D) 960×960×105mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 3×6=18(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 25kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >1000cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 8m
Protection Level(front/back) IP43/IP54
Power Consumption (Max) 800 w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 250 w/sqm
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >1000Hz
Drive Mode/Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 , Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
