P6 Indoor Rental LED 576×576mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

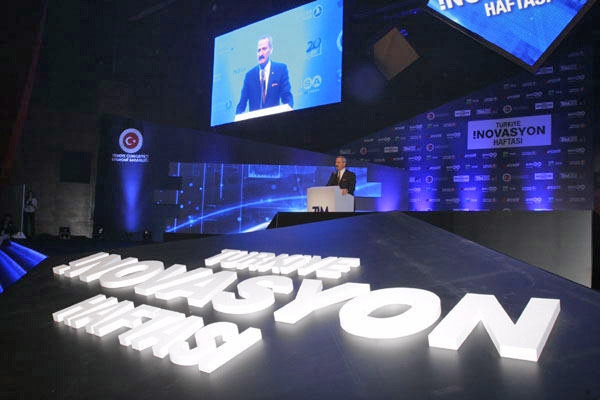

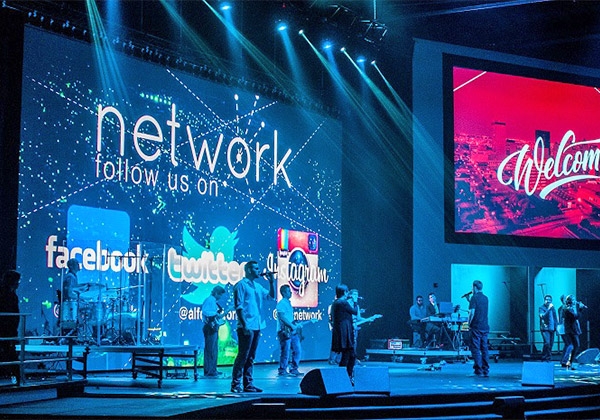

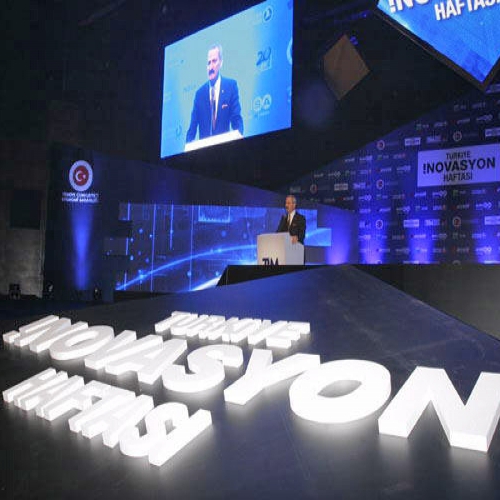

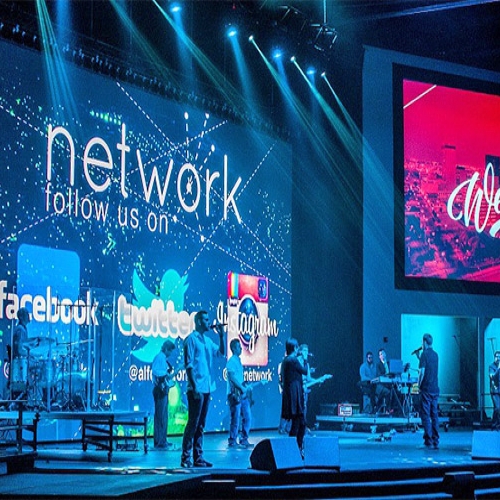

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

Multipurpose

High definition picture quality expands the reach, allowing more people to enjoy the display. It's multipurpose and can be used at banks, concerts, hotels, stations, summits and conference etc.



Quick Installation and Easy-to-use

Each module of China Indoor Rental LED Display weighs only 0.25kg and everything is installed inside, making it really lightweight. It's easy to install and use.



Pixel-perfect Display - Every time

The luminance and chromaticity of each LED lamp is set to provide over 99% highly unified consistency. So you will see a pixel-perfect picture - every single time.



Wider viewing angles

China Indoor Rental LED Display features 140 horizontal and 140 vertical angles - so you will get a super quality image in a super large range.


LED Lamp
Type SMD3528
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 6mm
Module Size 192×96mm
Module Resolution 32×16=512(Dots)
Module Weight 0.2kg
LED Cabinet
Pixel Density 27777Dots/sqm
Cabinet Dimension(W*H*D) 576×576×95mm
Cabinet Resolution 96×96=9216(Dots)
Module Quanty /Cabinet 6×3=18(Pcs)
Cabinets Material Aluminum-magnesium alloy Cabinet
Cabinet Weight 8kg
Brightness >3500cd/sqm
Viewing Angle 140(Horizontal), 140(Vertical)
Nearest Viewing Distance 9m
Power Consumption (Max) 800 w/sqm
Power Consumption (Average) 250 w/sqm
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/4 Scan,Combined diver board
Display Function Text,Graphics,Video
Frame Frequency no less than 60 frame/sec
Input Voltage AC110-220V±10%, 50/60Hz
Output Voltage DC-5V, 40A/60A/80A
Color Grayscale 16bit
Color Processing R(1024)×G(1024)×B(1024)
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures) 5000 hours
Life-span 100, 000 hours
Protection Level(front/back) IP43/IP54
Malfunction Dot Rate less than 0.0001
Working Temperature -30oC-50oC
Humidity 15%-85%
Control System
Control Mode Synchronization/Asynchronization
Control System Sending Card, Receiving Card, Receiving HUB
Software LED Studio
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German,
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
Input Signal AVI/MPG/MPEG/TXT.etc
PC Operating System Microsoft Windows 10, Windows 7 and XP
Communication Type Net cable; 3G, WIFI(Sold separately)
Certificate CE, ROHS, FCC, ISO9001, TUV



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
