P5 Outdoor Rental LED Screen 640×640mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Dış Mekan Led Ekran

Reklamcılık içeriğine sahip kişileri mağazanızdan geçerken göz hizasında tutun. LED ekranların büyüleyici görünümü, reklamcılığı cazip hale getiriyor. Tak ve çalıştır özelliği, zincir mağaza, otel, alışveriş merkezi vb. Için çok uygundur. İhtiyaçlarınıza ve bütçenize en uygun olanını bulmak için durumlarımıza bakın led ekran iç mekan ve dış mekan tasarımlarıyla led ekran fabrikası led garanti en iyisini size sunar

640×640mm Outdoor Rental LED Screen

Thanks for watching our product video, more product introduction, install and operate teaching lession welcome to visit our "Video" webpage or our YouTube channel

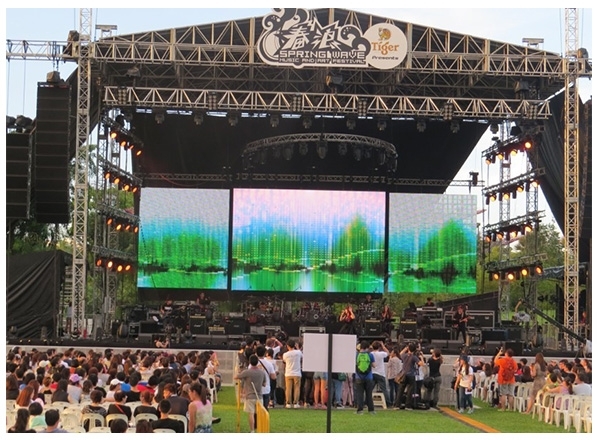

Multipurpose Outdoor Advertising Display

The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, stations, stadiums and other outdoor areas.

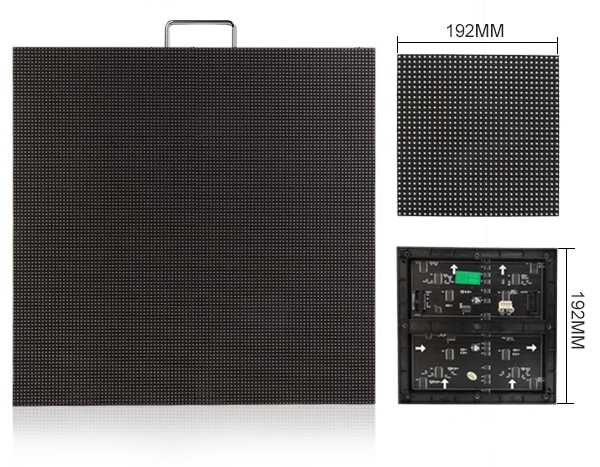

High Quality Black Body with Square Module

The display features high quality black body and square module. The strong body prevents any damage and makes it reliable in any weather conditions. Rectangle module makes it ideal to use at any place.


LED Lamp
Type SMD2727
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.2kg
LED Cabinet
Pixel Density 40000 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 128×128=16384(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 640×640×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 4×4=16(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 12kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >6500cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 120(Horizontal), 120(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 8m
Protection Level(front/back) IP66/IP54
Power Consumption (Max) 1200 w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 300 w/sqm
Working Temperature -30oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10, Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)


Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
