P8 Outdoor LED Display 1024×768mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Dış Mekan Totem Led Ekran

Dış mekan LED ekranının geniş ve şaşırtıcı görünümü, yerinın simgesi haline gelmektedir. Canlı görüntünün yayaların dikkatini çekmesi çok kolaydır ve reklam efektini genişletir. Oynatılan içeriği uzaktan kumanda ile değiştirebilirsiniz. Otoyol kenarındaki reklam panosu, istasyonda mesaj aktarımı olarak da yaygın şekilde kullanılır. Tüm açık alanlar için mevcuttur.

Quality Products to Count On

The double door aluminum cabinet and best quality wire keeps it safe, and its high resolution screen presents big and clear images. Apparently, your advertisement will stand out, catching more eyeballs.



High Refresh

Adopted MBI constant current driver which can make refresh rate up to 3000Hz load with single receiving card in one cabinet.High quality product ensure stable and clear image output.

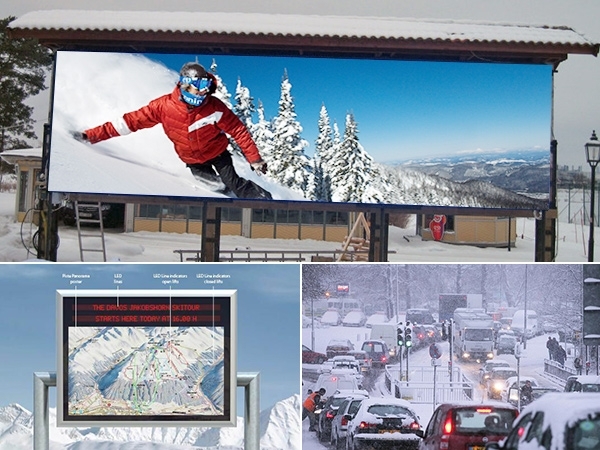

Low Temperature Resistance

The outdoor advertising LED display works seamlessly in a wide temperature range of -35 degree to 50 degrees. Ideal to use in any weather conditions. Highly protective against different weather conditions, heat, rain and dust.


LED Lamp
Type SMD3535
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(1000-1200mcd)
Chip parameters Green (520-525nm) IV:(2000-2500mcd)
Chip parameters Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch 8mm
Module Size(W*H*D) 256×128×25mm(Without magnet
Module Resolution 32×16=512(Dots)
Module Weight 0.5kg
LED Cabinet
Pixel Density 15625 Dots/sqm

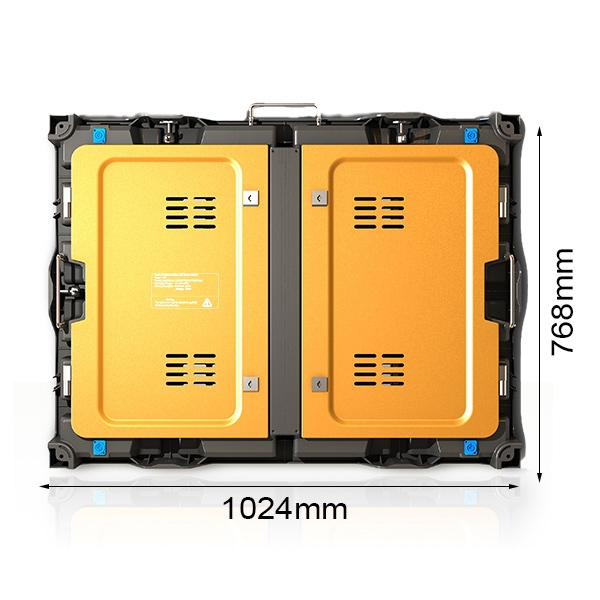

Cabinet Dimension(W*H*D) 1024×768×95mm
Cabinet Resolution 128×96=12288(Dots)
Module Quanty /Cabinet 4×6=24(Pcs)
Cabinets Material Aluminum-magnesium alloy Cabinet
Cabinet Weight 25kg
Brightness White Balance >6500cd/sqm
Viewing Angle 120(Horizontal), 70(Vertical)
Nearest Viewing Distance 11m
Power Consumption (Max) 650 w/sqm
Power Consumption (Average) 200 w/sqm
Refresh Rate >2000Hz
Drive Mode/Driver Position Constant driving 1/6 Scan, Combined diver board
Display Function Text, Graphics, Video
Frame Frequency no less than 60 frame/sec
Input Voltage AC110-220V±10%, 50/60Hz
Output Voltage DC-4.2V, 40A/60A/80A
Color Grayscale 16bit
Gray Scale per Color 65536 level
Color Processing R(1024)×G(1024)×B(1024)
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures) 5000 hours
Life-span 100, 000 hours
Protection Level(front/back) IP66/IP54
Malfunction Dot Rate less than 0.0001
Storage Temperature -35oC~85oC
Working Temperature -35oC~50oC
Humidity 15%~85%
Thermal Discharge Fan cooled
Control System
Control Method Synchronization
Control System Sending Card, Receiving Card, Receiving HUB
Software LED Studio
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German
Control Card Input DVI, USB, RJ45, HDMI(Sold separately)
Input Signal AVI/MPG/MPEG/TXT.etc
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Communication Type Net cable
Certificate CE, ROHS, FCC, ISO9001, TUV
