Reklamınızı istediğiniz yerde Reklamları, kamyonun üzerinden sürerek veya kalabalık yerlere göndererek reklamınızı daha fazla insanın görmesini sağlayacak şekilde oynayabilirsiniz. Ayrıca, küçük parti veya yardım etkinliği için sahne arka planı olarak kullanılabilir.

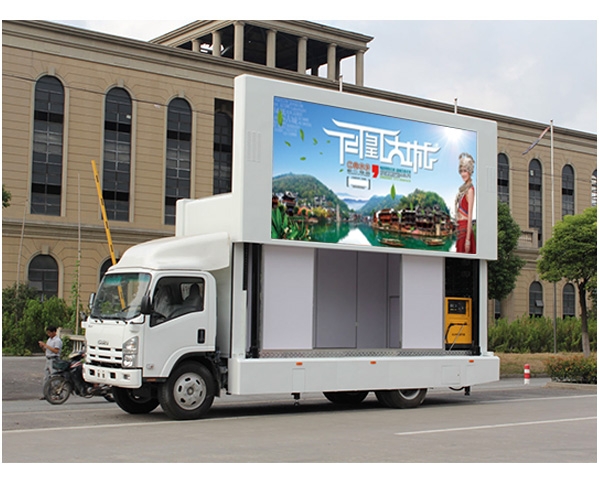

The moving LED display is finest option for truck and vehicle advertisement. The stable display keeps the images and videos blur-free, even when the vehicle is moving. Easy to install and control. One man can handle everything.
The Truck LED Screen has remained the hottest product in 2015 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2015.
All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.

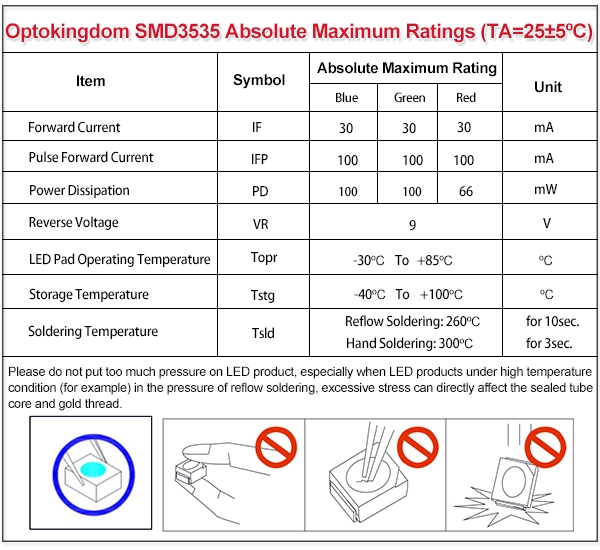

One: 1/10 Duty Cycle. Two: 0.1 msec Pulse Width.
One: Tolerance of measurement of Vf is ±0.05 V.
Two: Luminous Intensity Measurement allowance is ± 10%.
Three: Color Coordinates Measurement allowance is ± 1nm.
İnce ve çok hafif olması ekranın taşımasını,taşımacılığını ve yüklemesi oldukca kolay hale getirir.Yüklemek için özel malzeme gerekmez.Herşey zaten içinde yüklüdür,ve birkaç dakika içinde kolayca yükliyebilirsiniz.
|
Parameters |
PH6 Outdoor SMD series |
|
Pixel Pitch |
6 mm |
| Pixel Density |
27777 Dots/m² |
| LED Standard |
SMD3535 |

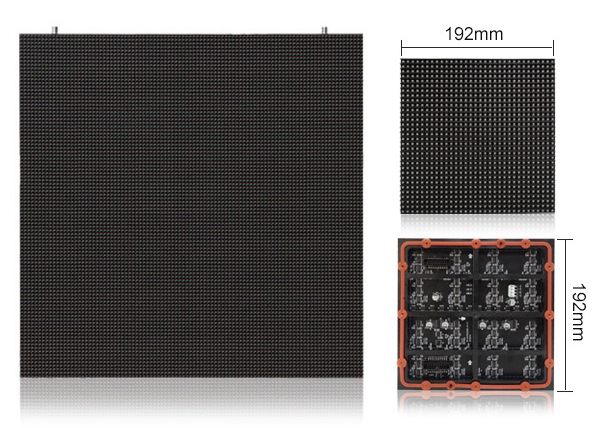

| Module Size |
192×192mm |
| Module Resolution |
32×32=1024(Dots) |
| Cabinet Dimension(W*H*D) |
960×960×175mm |
| Cabinet Resolution |
160×160=25600(Dots) |
|
Brightness |
≥7500cd/m² |
|
Grey Scale Levels |
16bit |
|
Protection Level(front/back) |
IP66/IP54 |
|
Display Function |
Text,Graphics,Video |
| Drive Mode/Driver Position |
Constant driving 1/8 Scan，Combined diver board |
|
Refresh Rate |
≥1000Hz |
|
Viewing Angle (H/V) |
H:120° V:120° |
|
Nearest Viewing Distance |
9m |
|
Consumption |
Max.consumption 1200w/m² Average.consumption 300w/m² |
|
Control Card Input |
DVI,USB,RJ45、HDMI（Sold separately) |
|
Comunication Type |
Net cable，3G、WIFI（Sold separately) |
