P5 Bus Station Advertising 1180×2440mm

2 Yıl ürün garantisi
10 Yıl yedek parça garantisi

Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

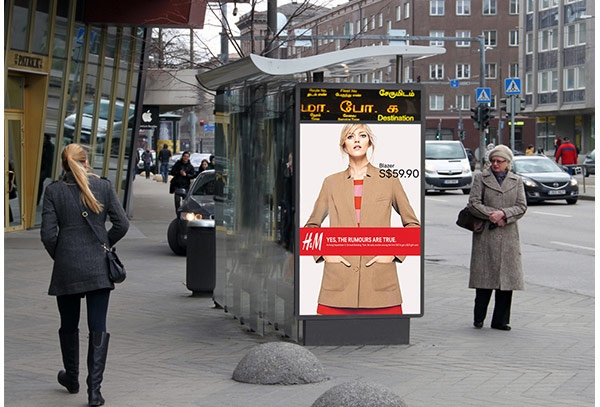

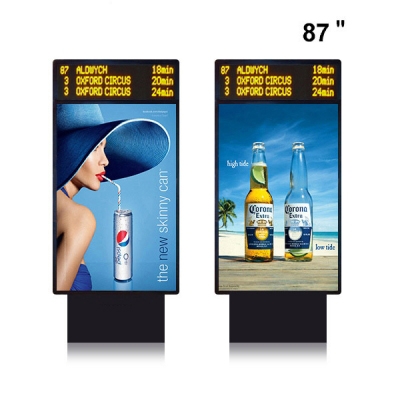

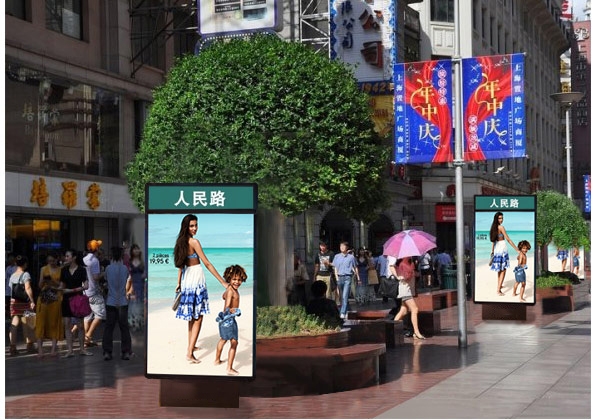

Hi-end Bus Stop LED Screen

With different controlling and display options like 3G and Wi-Fi control, the display is easy to operate from anywhere. Show real time information transmitted through 3G or Wi-Fi. Can be used at crowded places like shopping mall, supermarket and others to show your ad.


Resimlerinizde Her Detayı Sağlayın

Ürünlerimizin en ince detayına kadar uzun zaman ayırıp çalışmaktayız,bu sayede koyduğunuz resimlere bakmaktan keyif alcaksınız.Mükemmel pixel ile resimlerinize bakmaktan zevk alcaksınız,buda demek oluyor ki resimlerde,video ve ya yazılarınızda en ince detaya kadar görebilceksiniz.


Unique Design - Easy to Install & Transport

The cabinet of Business Advertising features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.


Yüksek Parlaklık ve Kaliteli Çıktı

Dış mekanlarda ekanlarımız yüksek parlaklıklı çıktıları destekler.Yüksek parlaklığı ve yüksek çözünürlüğü ile otobüs istasyonu için LED ekranı mükemmel görüntü ortaya çıkarır.Sahne,banka,otoban,promosyon,istasyon,stadyum ve birçok dış mekanlarda şahane bir şekilde durur.


Entegreli Tasarım,Kolay Yükleme

İnce ve çok hafif olması ekranın taşımasını,taşımacılığını ve yüklemesi oldukca kolay hale getirir.Yüklemek için özel malzeme gerekmez.Herşey zaten içinde yüklüdür,ve birkaç dakika içinde kolayca yükliyebilirsiniz.


Seamless Display and Visual Effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your Business Advertising LED display. The picture quality remains high due to best quality display material.


Real Time Monitoring - Easy to Manage

The LED display can be connected with different devices through cable for real-time control. Keep an eye on everything through remote controlling. Remote management allows you to manage the activities from anywhere. Highly suitable for public announcements.

LED Lamp
Type SMD2727
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 5mm
Module Size 160×160mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.4kg
LED Cabinet
Display Dimension(W*H) 1120×1920mm
The entire screen size(W*H*D) 1180×2440×180mm
Resolution W*H(dots/set) 224×384
The entire screen resolution 86016dots
Cabinets Material Steel
Frame Frequency no less than 60 frame/sec
Cabinet Weight 273kg
Input Voltage AC110-220V±10%,50/60Hz
Brightness ≥7000cd/㎡
Output Voltage DC-5V,40A/60A/80A
Viewing Angle 120(Horizontal),120(Vertical)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Nearest Viewing Distance 6m
Color Processing R(1024)×G(1024)×B(1024)
Total Power Consumption (Max) 7380W/H
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Average) 1840W/H
MTBF( mean time between failures) 5000 hours
Display Function Text,Graphics,Video
Life-span 100,000 hours
Refresh Rate ≥1000Hz
Protection Level(front/back) IP66/IP54
Working Temperature -30℃~50℃
Malfunction Dot Rate less than 0.0001
Humidity 15%~85%
Drive Mode/Driver Position Constant driving 1/8 Scan,Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB

Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
