P3 Indoor Advertising Player 1040×2200mm

2 Yıl ürün garantisi
10 Yıl yedek parça garantisi

Mağaza Bilboard Led Ekran

Engage people with advertising content at eye level as they walk through your shop. The fascinating appearance of LED displays makes advertising attractive. Plug-on and play function is very suitable for chain store, hotel, shopping mall etc. See our cases to find one that best suits your needs and budget.

PH3 Indoor LED Advertising Player

It features steel frame, tempered glass face, fashionable design and stable display performance. A perfect match for Indoor LED Advertising and can also be used at bank, store, airport, hotel, station, summit, theatre and other indoor areas.


LED advertising display

Pixel pitch: 3mm Pixel configuration: SMD Brightness: over 2000cd/㎡ Refresh rate: over 1000Hz Drive mode: 1/16 Scan Panel dimension: 960×1920mm


Attractive iPhone Shape - Lighter and Thinner

Advertising Indoor LED Display features a beautiful iPhone shape measuring 1040mm, 2200mm and 100mm in length, height and width respectively. It's lighter than traditional advertising players which make it easy to transport and install.


Elegant Look and Slim Frame

The display is manufactured from a powder coated steel base and aluminum allow frame which gives it a beautiful look and extra strength. The surface is coated with a smooth and seamless tempered glass that present clear pictures and more safety.


Easy to Operate - Plug and Play

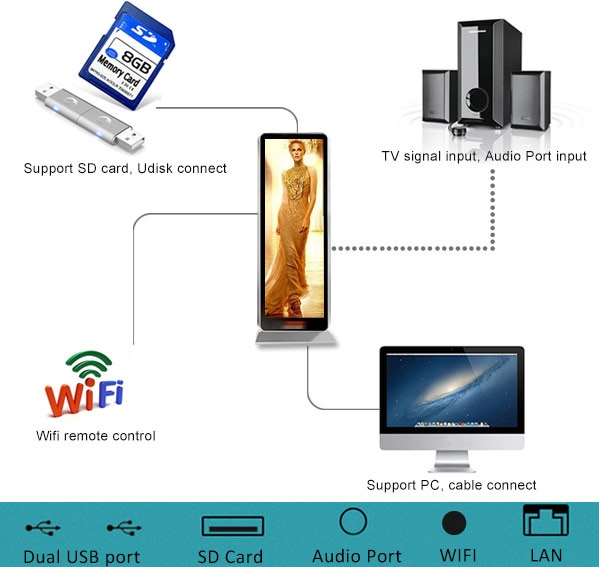

It's very easy to operate - just plug it into any device and play. Supports a wide range of devices. The integrated design has everything in-built like control card and power supply. Plug and play is very convenient to use. - See more at:


Sıkı Ömür Testi

Tüm ürünler sıkı bir ömür testine tabi tutulur. 72 saat yaşlandırma testi, lamba, loş ışık, renk farkı ve mozaik kullanılmadan yapılır. Ürün ömür testinden geçerse, sizin için en iyi kalitenin sağlandığından emin olarak piyasaya sürülür.


More Information - More Entertainment

The Indoor LED Advertising display is a great tool for information broadcasting, and can be used as an advertising media and training module. But when connected, it shows your advertising, favorite TV shows. So you release more information and more advertising over single display.


Multipurpose and Multifunction

The Advertising Indoor LED Display can be used at different places and can serve different purposes. Starting from a private club reception to hotel lobby and bar, it can be installed anywhere. It can be used for advertising purpose and for entertainment purpose.

LED Lamp
Type SMD2121 black body
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd)
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 3mm
Module Size 192×96mm
Module Resolution 64×32=2048(Dots)
Module Weight 0.15kg
LED Cabinet
Display Dimension(W*H) 960×1920mm
The entire screen size(W*H*D) 1040×2200×120mm
Resolution W*H(dots/set) 320×640
Base Size(W*H*D) 1040×600×120mm
The entire screen resolution 204800dots
Frame Frequency no less than 60 frame/sec
Cabinets Material Steel
Input Voltage AC110-220V±10%,50/60Hz
Cabinet Weight 135kg
Output Voltage DC-5V,40A/60A/80A
Brightness ≥2000cd/㎡
Color Grayscale 16bit
Gray Scale per Color 65536 level
Viewing Angle 140(Horizontal),140(Vertical)
Color Processing R(1024)×G(1024)×B(1024)
Nearest Viewing Distance 4m
Brightness Adjustment 256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max) 2400W/H
MTBF( mean time between failures) 5000 hours
Total Power Consumption (Average) 700W/H
Life-span 100,000 hours
Display Function Text,Graphics,Video
Protection Level(front/back) IP65/IP43
Refresh Rate ≥1000Hz
Malfunction Dot Rate less than 0.0001
Working Temperature -15℃~50℃
Drive Mode/Driver Position Constant driving 1/16 Scan,Combined diver board
Humidity 15%~85%
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card,Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software Led show
Communication Type WIFI, Net cable,3G(Sold separately)
Language Chinese,English
Certificate CE,ROHS,FCC,ISO9001,TUV
Control Card Input RJ45,HDMI,USB

Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
