P3 Indoor Rental LED 576×576mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


İç Mekan Rental Led Ekran

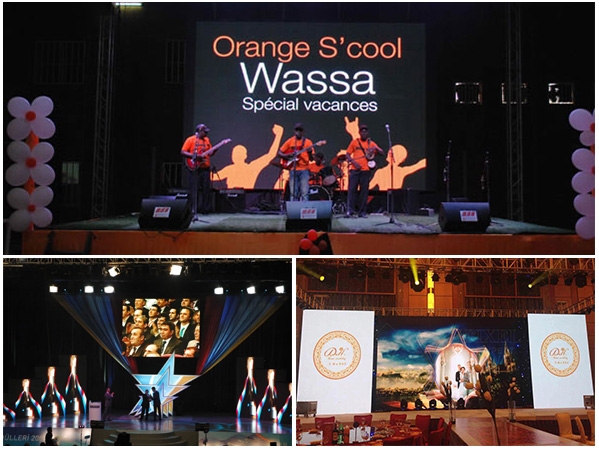

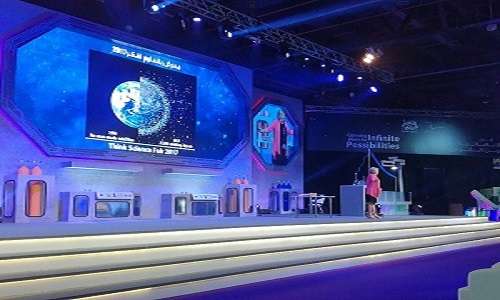

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.

PH3 Indoor Rental LED Display

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED Screen Rental. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.



Hot Product in 2015

The LED Screen Rental has remained the hottest product in 2015 loved by thousands of people. With its advanced features, multiple usage and affordable LED Screen Rental Price, it is being purchased by various business owners. It is listed amongst the most sold products of 2015.

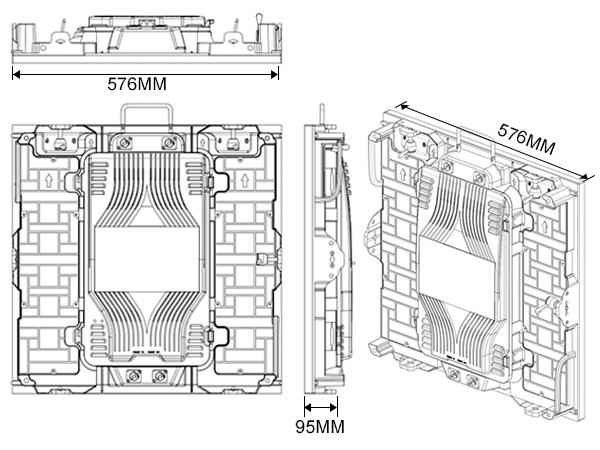

Standard Kabin Boyutları

Aliminyum-magnezyum olan ultra hafif kabinlerimiz taşıması kolay olup kendisine daha çok güç ve dayanıklılık verir.Ekranı mükemmeliyetle hazırlanmıştır.Yüklemesi oldukça kolaydır.Ayrıca kolay kitle-aç sistemi hiçbir teknolojik alete gerek duymadan kolayca yükleme yapabilirsiniz.



Perfect Brightness and Chromaticity Calibration

Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.



Space Saving, Ultra-lightweight

The LED Screen Rental is only very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.

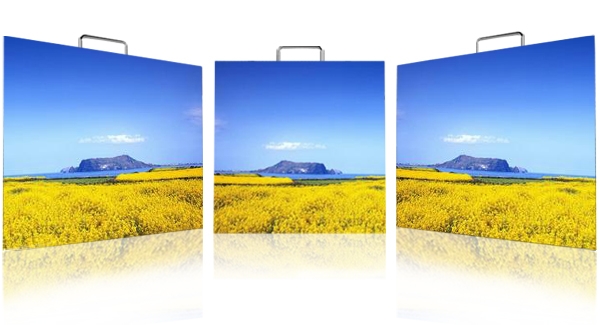

Geniş Bir Kitle İçin Geniş Görünüm Açışı

LED ekran modülü 140° görünüm açışı ile daha fazla kişiye ulaşacaktır.Resim kalitesi her uzaklıktan aynı şekilde pürüzsüz bir görüntü vermektedir.Buda kalabalık mekanlar için çok uygundur

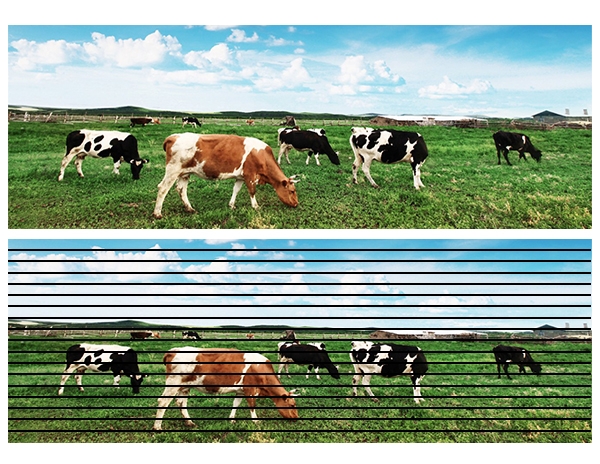

Yüksek Çözünürlük

Led ekranlar en son teknoloji ile üretilmiş olup tarama özelliği olan ve yüksek parlaklıkla birlikte en yüksek çözünürlüğü vermektedir.1000Hz ile tazelemek ve çözünürlüğü destekler bu da en kalteli resimleri,videoları ve yazıları vermektedir.

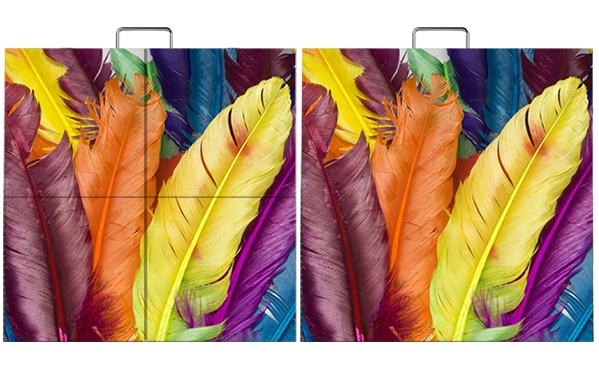

Seamless display and visual effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.



Uygulama

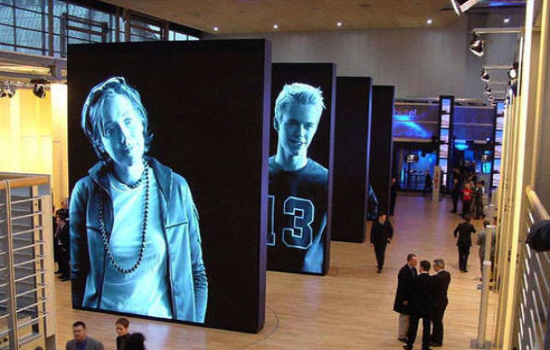

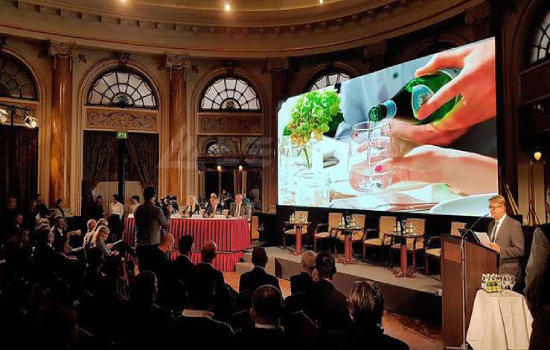

LED Screen Rental, alışveriş merkezleri, evreler, zincir mağazalar, oteller, kamu binaları, barlar, restoranlar, bankalar gibi kapalı yerlerde çok kullanışlı. İnce boyutu ve ultra hafif modülü, fazla alan kaplamadan her alanda kurulumu kolaylaştırıyor.


LED Lamp
Type SMD2121 black body
Brand Nationstar/Kınglıght/ Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd)
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 3mm
Module Size 192×192mm
Module Resolution 64×64=4096(Dots)
Module Weight 0.5kg
LED Cabinet
Pixel Density 111111 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 192×192=36864(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 576×576×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 3×3=9(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 10kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >2000cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 6m
Protection Level(front/back) IP31/IP54
Power Consumption (Max) 1200 w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 300 w/sqm
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)



Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
