P6 Indoor Rental LED Screen 192x192mm

2 Yıl ürün garantisi
10 Yıl yedek parça garantisi

İç Mekan Rental Led Ekran

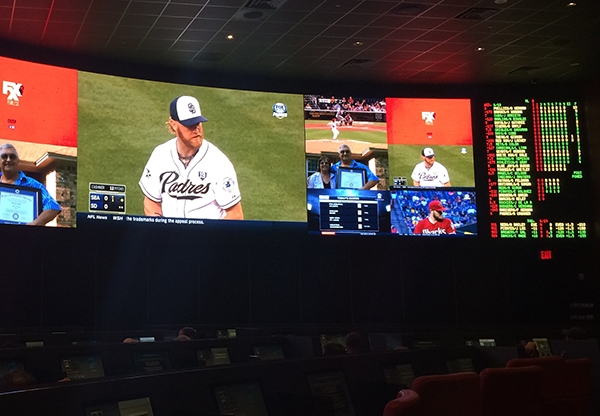

Indoor rental led displays are featured with high definition, wide viewing angle and extremely close viewing distance to meet the needs of indoor use. While a thin, lightweight design for these LED video wall modules make for quick, convenient setup and package. All are for making perfect solution of hotel conference, wedding banquet, stage background, high-end summit, commercial promotion and exhibition. Click here to see more successful cases.


High definition picture quality expands the reach, allowing more people to enjoy the display. It's multipurpose and can be used at banks, concerts, hotels, stations, summits and conference etc.


Pixel-perfect Display - Every time

The luminance and chromaticity of each LED lamp is set to provide over 99% highly unified consistency. So you will see a pixel-perfect picture - every single time.


The Quality Module

Replace module within minutes - just with a screwdriver. The small size and light weight of the module makes it easy to carry and install.

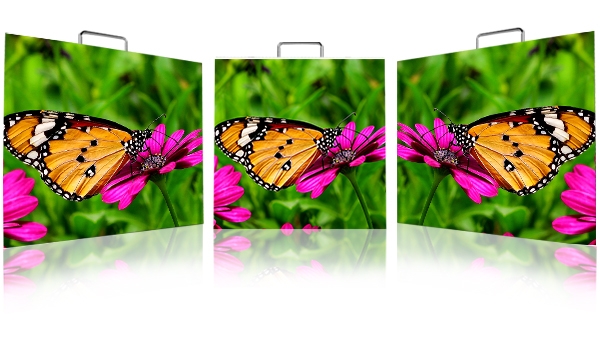

Wider viewing angles

China Indoor Rental LED Display features 140 horizontal and 140 vertical angles - so you will get a super quality image in a super large range.

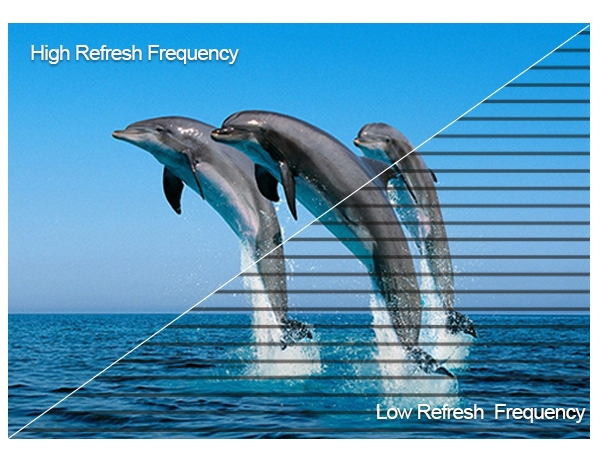

Resimler Için Titreşimsiz Yüksek Çözünürlük

1000hz üstünde olan yüksek çözünürlüğü size inanılmaz,Titreşimsiz ve pürürsüz bir deneyim sağlar.

LED Lamp
Type SMD3528
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)

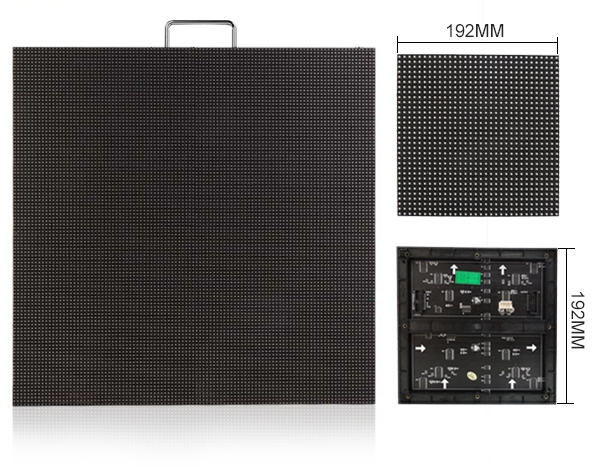

LED Module
Pixel Pitch 6mm
Module Size 192×192mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.25kg

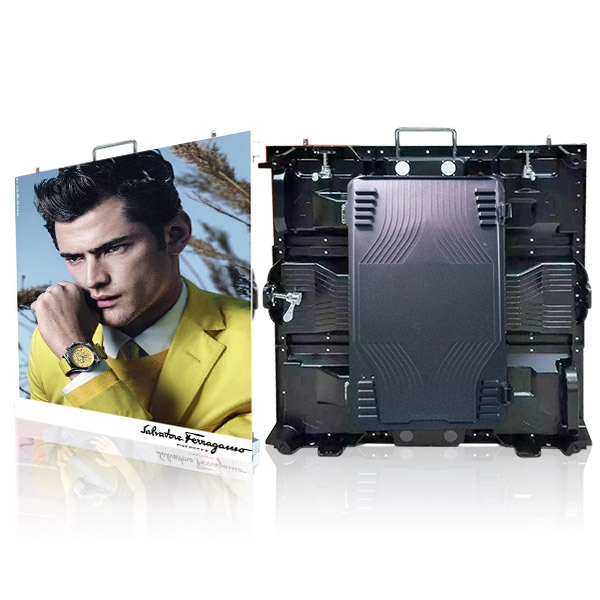

LED Cabinet
Pixel Density 27777 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 96×96=9216(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 576×576×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 3×3=9(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 7.4kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >2400cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 9m
Protection Level(front/back) IP43/IP54
Power Consumption (Max) 900 w/sqm
Power Consumption (Average) 260 w/sqm
Malfunction Dot Rate less than 0.0001
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >1000Hz
Drive Mode/Driver Position Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 , Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)

Ürün Teknik Özellikleri

Ürüne ait teknik detayların bulunduğu pdf'e ulaşmak için Butona Tıklayın
