PH6 Outdoor SMD LED Screen 960×960mm



2 Yıl ürün garantisi
10 Yıl yedek parça garantisi


Dış Mekan Totem Led Ekran

Dış mekan LED ekranının geniş ve şaşırtıcı görünümü, yerinın simgesi haline gelmektedir. Canlı görüntünün yayaların dikkatini çekmesi çok kolaydır ve reklam efektini genişletir. Oynatılan içeriği uzaktan kumanda ile değiştirebilirsiniz. Otoyol kenarındaki reklam panosu, istasyonda mesaj aktarımı olarak da yaygın şekilde kullanılır. Tüm açık alanlar için mevcuttur.

Outdoor smd led displays

This cabinet of outdoor smd led displays can be make up large advertising led wall with great advertising effect. It's suitable for stage, bank, promotion, exhibition, highway, station, KTV, stadium, airport and all outdoor places.

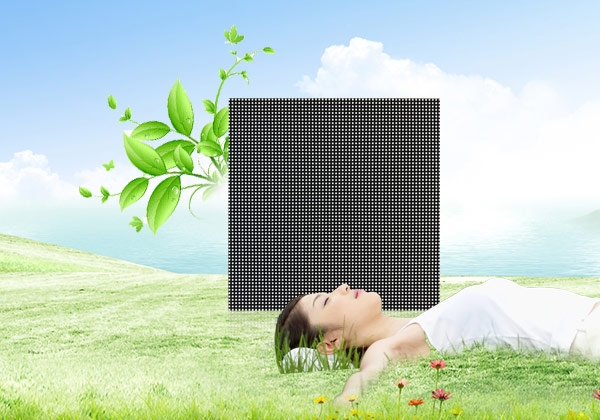

Humanization design,easy to install

Ergonomics design of outdoor smd led displays makes your installation easier than traditional product,saving your labor and time cost.



High Cost-effective

Concise design makes it lighter and thinner than traditional panel, saving your transportationThree in one technology is adopted for each pixel to save power energy. PCB boards are with large scale integrated circuit design, the stability of the LED display system is improved.



High definition and high brightness

Over 7000cd/㎡ brightness , clear image even in the rainy day or in the strong sunshine. manual and automatic brightness adjustment available makes it suitable for any different environment Products adopt international famous IC and high quality lamps to ensure small parameters fluctuation coefficient, high brightness, wide view angle and good color consistency in severe environment.

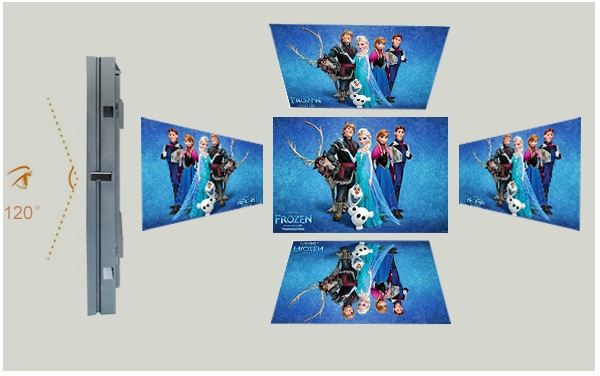

Large view angle

The horizontal view angle of the adopted chips can be as large as 120°or above and the vertical view angle can be as large as 120°, no image deformation and color cast on view effect within the view angle range.

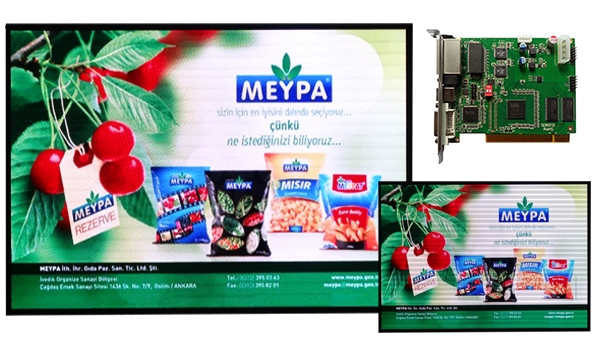

LINSN Kontrol Sistemi

Pürüzsüz görüntü görüntüsü 1000Hz ile çekim gerçekleştirilir. Net görüntü sağlanması Kararlı performans, hiçbir yanıp sönen ve siyah ekran, geniş çözünürlüklü yükleme ve ekran için yüksek yenileme oranı.

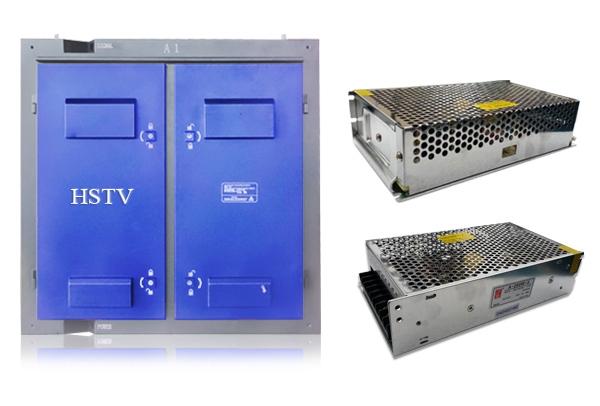

Big brand power supplier

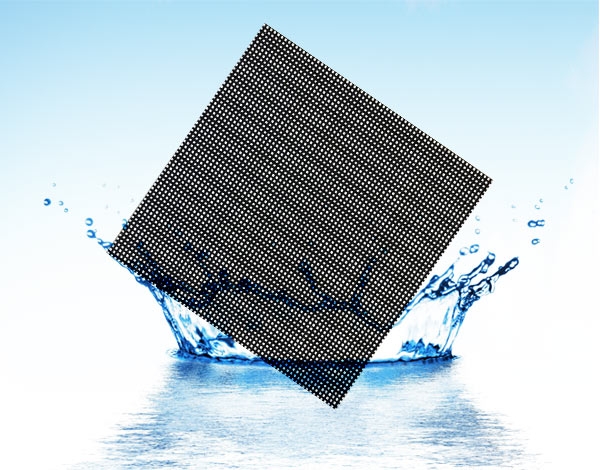

Special waterproof design protect your product out of water , the high quality is worthy of trust.The switch power suppliers are with international famous brand configuration and high stability, low temperature service life is long.



Uygulama

Ürünlerimiz tüm dünya etrafında kurulmuştur.


LED Lamp
Type SMD3535
Brand Kinglight
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(800-960mcd)
Chip parameters Green (520-525nm) IV:(1350-1650mcd)
Chip parameters Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch 6.67mm
Module Size 320×160mm
Module Resolution 48×24=1152(Dots)
Module Weight 0.5kg
LED Cabinet
Pixel Density 22477 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 96×96=9216(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 640×640×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 2×4=8(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 12kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >5500cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 120(Horizontal), 120(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 10m
Protection Level(front/back) IP66/IP54
Power Consumption (Max) 1200 w/sqm
Power Consumption (Average) 300 w/sqm
Malfunction Dot Rate less than 0.0001
Working Temperature -30oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >1000Hz
Drive Mode/Driver Position Constant driving 1/6 Scan, Combined diver board

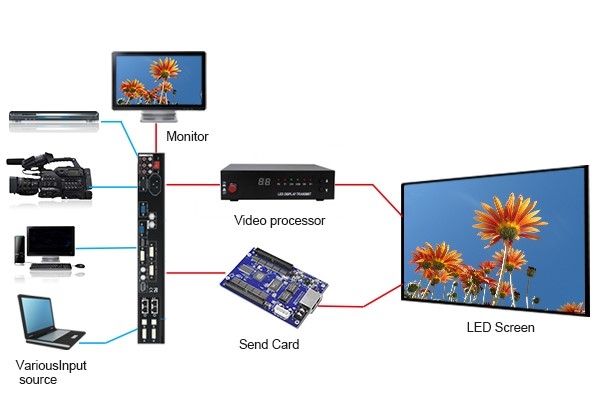

Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 , Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
